The Flood Next Time

Posted on January 8, 2019 by Gregg Levine

For nuclear power plants facing aging dams and rising seas, is a captured regulator the last finger in the dike?

Fort Calhoun nuclear plant surrounded by flood waters — Nebraska’s Fort Calhoun nuclear power plant surrounded by flood waters from the Missouri River in June 2011.

At just before 3 local time on the afternoon of March 11, 2011, the operators of the Fukushima Daiichi nuclear power plant already had a problem. An earthquake measuring 9.1 on the moment magnitude scale—the largest to hit Japan since at least 1900—had damaged key systems at the facility, an emergency greatly compounded by the region-wide power outage caused by the massive temblor.

A station blackout (or SBO, as termed by an industry intensely fond of acronyms) at a nuclear power plant is, by design, cause for concern. Light-water reactors—the category that includes the units at Fukushima Daiichi and every one of the 98 still-operating reactors in the United States—function inside a kind of paradox: in order to safely generate a dependable output of electricity, they require a steady input of electricity. A plant’s meters and monitors need electricity; so, too, do many of the motors that raise and lower large, neutron-absorbing boron control rods used to regulate the atomic activity inside a reactor core. And, perhaps most critically, the systems that circulate cool water (crucial for expelling some of the intense heat generated by the fission reaction) through the nuclear reactors, as well as through pools where decades of used but still highly radioactive “spent” fuel is stored, depend on electric-powered pumps.

The SBO at Daiichi triggered a back-up: several diesel-powered emergency generators that would provide enough electricity to run the cooling systems until power could be restored (as long as there were fuel for the generators). But less than an hour later, a wave higher than a four-story building—the tsunami set off by the quake—swept over the seaside site and flooded the nuclear facility, knocking out most of the generators, which had been situated in the basement by General Electric, the plant’s designer.

Without electricity (what is called a “LOOP,” for “loss of onsite power”), the pumps stopped circulating the water, and without that circulation, the temperature inside the reactor cores quickly exceeded boiling. Within three hours, the tops of the zirconium-clad uranium fuel rods were exposed to air, starting a series of chemical reactions hot enough to free hydrogen atoms from their watery bonds. Despite the valiant efforts of hundreds of plant workers, intense heat and pressure built up inside the containment structures. Three reactor cores suffered complete meltdowns, and over the next few days, at least three powerful hydrogen explosions leveled containment buildings and shot plumes of radioactive gas and particulates high into the air, spreading contamination over land and sea. The rest is an ominous and still-evolving history Japan continues to battle nearly eight years on.

Of the currently operating civilian nuclear reactors in the US, scattered across 30 states, about two-thirds sit on the banks of rivers, lakes, or reservoirs. Add in plants on ocean shorelines, and the number of reactors adjacent to large, sometimes unruly bodies of water climbs above 80. But according to a whistleblower at the United States Nuclear Regulatory Commission (NRC)—backed up by information provided by regulators and watchdogs—more than a third of those reactors are either on sites that would no longer meet NRC flood risk guidelines for new reactor construction, or are vulnerable to flooding caused by dam breaks, swelling rivers, rising sea levels, or increasingly severe weather events.

It is that kind of foresight that was once considered the stock and trade of government regulators: examine the science, identify potential problems, and use the power and authority of the government to compel remedies and improve public safety. But in the wake of another Atlantic Hurricane season—where several nuclear plants had to reduce output or (in one case) shut down completely because of the threat of “catastrophic” flooding—it is sobering to note that, while Fukushima has been analyzed and debated by nuclear operators and regulators, the lessons of Japan’s disaster have not sufficiently been taken to heart, nor put into practice. Be it because of debates over cost-benefit assessment or blatant examples of corporate sway, what seems on one level the minutiae of regulatory process are also part and parcel of what growing numbers of Americans see as ineffectual governance by a corrupt—and corrupting—swamp.

* * *

Soon after the start of the Fukushima crisis, the NRC established a panel, known as the Near-Term Task Force (NTTF), to review the disaster in Japan and recommend regulatory changes and plant upgrades to enhance safety at US nuclear facilities. Their findings—often shorthanded as the NTTF report, or the NTTF recommendations—were comprehensive (though not, in some critics’ eyes, comprehensive enough), touching on concerns from seismic reevaluations to emergency response, with lots of technical considerations in between—including dozens of pages on flooding and the LOOP accidents it can cause.

The report came out in July, and by October, the NRC had identified a small selection of the recommendations it considered top tier and requiring implementation “without delay,” as the Commission put it at the time. Central to many of those proposals were the hazards posed by flooding.

But it’s not as if the dangers of flooding were unknown to nuclear regulators (or the industry) before the cascading disaster at Fukushima Daiichi. In fact, at Duke Energy’s Oconee Nuclear Station (ONS) in the northwesternmost corner of South Carolina, regulators and plant owners had been debating the facility’s flood risk and flood preparedness for decades.

“The concern has been around in its current iteration since 2005 or -6, but it has been raised many times in the past,” said Larry Criscione, a reliability and risk analyst at the NRC since 2009. “It was raised in the ‘80s, it was raised in the ‘90s—I think it was raised in the ‘70s as part of [Oconee’s] initial licensing.”

Construction on ONS began in 1967, and its three reactors were all online before the NRC opened its doors in 1975. But documents provided by Criscione show that by 1977, the Commission had identified flood concerns at several plants licensed before the formation of the regulatory body. Oconee is one of them, and an alphabet soup of studies and recommendations—most notably the IPEEE (the Individual Plant Examination of External Events) for Severe Accident Vulnerabilities in 1991—requested its operators assess and plan for what the industry calls “beyond design basis events” (BDBEs), incidents more extreme or powerful than accounted for in a plant’s original design (of which the earthquake and tsunami in Japan later became prime examples).

Oconee is located on the shore of Lake Keowee, an artificial reservoir created by the damming of the Keowee River, and part of a system of dams built in the 1960s and ‘70s that also includes the Jocassee Dam, just 11 miles upstream from Keowee and ONS. What would happen should the Jocassee Dam fail—and just how likely that is to happen—is central to the debate over the flood preparedness at the nuclear plant. And it is central to the life of Larry Criscione.

* * *

That a dam failure would be a BDBE of dire proportions for ONS once seemed beyond debate. “As I understand it, the NRC’s assessment of the consequences of a flooding event at Oconee would be even greater than at Fukushima,” said Tim Judson, executive director of the Nuclear Information and Resource Service, a nuclear industry watchdog. Because Fukushima Daiichi was located on the coast, and prevailing winds blew an estimated 80 percent of the fallout out to sea in the first weeks of the disaster, much of central and southern Japan was spared the high levels of radioactive contamination seen in the prefectures immediately surrounding the failed nuclear plant. Still, more than 150,000 people had to be relocated from a 12-mile radius around Daiichi.

If the Jocassee Dam were to fail, the resulting flood would inundate Oconee with 12 to 17 feet of water in about five hours, according to Duke Energy’s own assessment, filed in the 1990s in response to the IPEEE, and referenced by Criscione in his report to the NRC. A station blackout would follow, and because Oconee’s backup plan involves hydroelectric power generated by the dams on Lake Keowee, and a break of the Jocassee Dam is projected to cause Keowee Dam failure, ONS would suffer a complete LOOP. With no electricity to run the cooling systems, all three reactor cores would melt down in eight to ten hours, and (and again, this is from Duke Energy’s report) the containment buildings would fail within three days. Radioactive contamination would head down river with the flood waters, and an airborne plume would engulf the university town of Clemson, 10 miles to the southeast, and then lay a blanket of fallout 300 miles eastward to the sea.

But at the time—a pre-Fukushima time—Duke argued that this nightmare scenario was so improbable as to not merit the kind of elaborate and expensive safety upgrades required to prevent it.

As Criscione explains it, the NRC evaluates Beyond Design Basis Events by two scales: one is the relative chance that a given event will occur; the other is the resulting danger once it does. For instance, the risk analyst told me, if a meteorite were to crash into a nuclear power facility, the results could be catastrophic, but the chances of a meteor strike are calculated to be so vanishingly small that plant operators are not required to guard against it.

“The term they use in nuclear is ‘credible,’” said Criscione, “you have to protect against credible threats.”

But try to find a place in the regulations where “credible” is defined. “You’ll never be able to,” Criscione told me. Instead, there is an unspoken range: In “the day-to-day business of the NRC, when things are less than one in a million [in any given year], you can make an argument they’re not credible; when they’re more than one in 10,000, they’re certainly credible.”

“When they’re in between,” Criscione continued, “that’s where the debates start to happen.”

“In a case like Fukushima, you see where that falls apart,” cautioned NIRS’s Judson. “The NRC would have very likely determined what happened at Fukushima was outside credibility range—less than one in a million—so therefore they wouldn’t have done anything about it.”

“Despite that,” Judson observed, “it happened, and the consequences are so great it outweighs the entire alleged benefit of the Japanese nuclear power program.” (After the quake and tsunami, one NRC commissioner reevaluated the risks at Fukushima, and determined they had been one in 1,000 in any given year. Or, to put it another way, TEPCO, the operators of Fukushima Daiichi, were lucky for 40 years, until the year they weren’t.)

In the case of Oconee, with the consequences of a Jocassee Dam failure originally agreed to be grim, Duke Energy debated the probability, placing it outside the “credible” one-in-10,000 chance. But by 2010, as Criscione’s NRC-sponsored analysis showed, it was Duke’s assessment that lacked credibility. Taking into account a broader data-set (paleological as opposed to solely the far-more-limited historical record) and the reassessment of critical infrastructure conducted by various US agencies (notably FERC, the Federal Energy Regulatory Commission) in the years after the September 11, 2001 attacks, regulators placed the odds of dam break causing a BDBE at ONS at one in 3,600—about the chance of drawing a straight in poker, as Criscione put it—or if projected over the remaining time on the plant’s license, there’s better than a one-in-200 chance of such an accident before ONS permanently shuts down. That’s not a certainty in any given year, said Criscione, but it is well above the NRC’s unspoken credibility threshold of one in 10,000.

And the NRC and Duke Energy were in the process of negotiating what should be done to address this now-understood-to-be-credible threat when, as Criscione, Judson, and other nuclear watchdogs see it, Fukushima changed everything.

* * *

When the NRC moved to adopt some of the NTTF recommendations (and only a subset of a subset of the report was ever considered by the Commission as formal rules), oversight of implementation was given to the JLD—the Japan Lessons-Learned Directorate (later expanded and renamed, replacing “Directorate” with “Division”)—a group that was supposed to hive off Fukushima-related concerns to allow “the rest of the NRC keep its focus on other important issues faced by the agency,” as JLD’s own web page put it. But almost inherent in that language is a segregation that puts anything dubbed a post-Fukushima upgrade into a new class of oversight—one that, to those on the inside like Criscione, did not meet the urgency of the risks at hand, nor the fanfare of the Commission’s own pronouncements.

As Criscione told me, Duke Energy “came to the NRC” soon after the start of the Fukushima crisis and argued that if there were going to be new rules derived from that disaster, Duke didn’t want to invest in upgrades at Oconee only to find they fell short of post-Fukushima recommendations.

On its face, said Criscione, “that was a reasonable request.” However, what it did in practice was move the Oconee case from staff who had been trying to address it for five years, who had a knowledge of the issues and the history of the debate, to personnel who were, according to Criscione, not only starting from scratch, but were led by “an industry apologist.”

“You’ve got to understand how the JLD operated,” Criscione explained, “the NRC really likes to see the industry fix its own problems.” It’s the nuclear industry that builds the power plants—the Commission just licenses them. The industry designs the plants, and the NRC reviews those designs. “We don’t tell them how to fix problems,” said Criscione, “we review their fixes to their problems to see if they’re accurate.”

When it came to post-Fukushima fixes, Criscione said, “we didn’t approach it with the attitude of ‘We’re the government, we’re going to decide what changes you need to make your plants safe.’ We approached it with the attitude of ‘You’re the plant owners, you prove to us that your plants are safe.’”

The lobbying arm of the industry, the Nuclear Energy Institute (NEI), came to the NRC with standards it had written to address post-Fukushima concerns like flooding and loss of onsite power events. “And,” as Criscione described it, given the general framework of how the NRC operates, “there’s nothing wrong with that.”

“The problem is that the person who was in charge at the JLD,” the one responsible for evaluating standards, the one who had the power to overrule the rest of the staff, as Criscione told me, “was actively seeking a job as a vice president at NEI.”

Criscione was not exaggerating. The NRC executive in question, Jack R. Davis, bragged on his LinkedIn page at the time (saved for posterity at the Environmental Archive) that his work at what was supposed to be the public’s nuclear regulator had “saved the commercial energy generation industry $1.6 billion,” and “achieved 80 percent reduction in the number of customers needing to complete mandated federal safety improvements.” Those Davis saw as his “customers” were in the energy industry, not the American people who were then paying his salary.

Davis didn’t get his job at NEI, but by 2016, he had landed an executive post at Entergy, one of the nation’s largest owners of nuclear power plants, and the company with the ignominious distinction of operating what the NRC has determined are the country’s three worst-rated nuclear facilities in terms of safety.

With respect to Oconee, the transfer of flood issues to the JLD resulted in a projected 17-foot flood being reevaluated down to a five-foot threat, which is coincidentally the height of a flood barrier built outside the plant in the 1980s. It was a coincidence that did not sit well with Criscione, who was charged with evaluating flood safety. In 2012, he forwarded his concerns to the chair of the NRC and to select members of Congress—information that eventually made its way to the environmental group Greenpeace and into a story in the Huffington Post.

The coverage caught the attention of the NRC’s inspector general, who, rather than act on Criscione’s allegations of lax oversite, opened an investigation into his sharing of official documents.

Criscione said he doesn’t believe he is currently under investigation by the Office of the Inspector General (NRC OIG), but he has also not seen a final report on his case, which he’s told is still under review.

* * *

Better than one in every four nuclear plants is at risk of a flooding event, according to Criscione, an event that could lead to a Fukushima-style disaster. With more than 20 reactors along the eastern seaboard vulnerable to hurricanes, flying debris, heavy rains, and massive storm surges, and dozens of others inland near swelling rivers and aging dams—all with a half-century of spent fuel rods stored nearby—the implications for the hundreds of millions of US residents that live near these reactors is at least unsettling. With climate change increasing the frequency and severity of flood-provoking events, the status quo should be unacceptable.

The NRC will tell you it has it all in hand. “Every US reactor site has completed its flooding hazard reanalysis,” Scott Burnell, the NRC’s public affairs officer, told me in an email.

Central to the post-Fukushima seismic- and flood-hazard analysis was something called a “walkdown.” The NRC “asked” US nuclear power plants “to perform a detailed inspection” of “their currently installed seismic and flooding protection features [and] ensure the features met current requirements.” Plant operators were also told to “identify, correct, and report any degraded conditions.” According to the NRC’s website, this phase was completed across the entire US nuclear fleet by November 2012.

But in March 2013, at Arkansas Nuclear One (ANO), a two-reactor facility 80 miles northeast of Little Rock, the accidental dropping of a 550-ton generator component in the truck bay caused enough shaking to rupture a water pipe. Water flooded the plant’s electrical switchgear, interrupting all power to one reactor, and partially disabling the second. Emergency diesel generators kicked in to ward off a bigger disaster, but the accident, which killed one plant worker and injured eight others, revealed that dozens of penetration points had missing or improperly installed seals.

Dave Lochbaum, the director of the Nuclear Safety Project at the Union of Concerned Scientists, contacted the NRC to express his grave concern about the quality of their plant walkdown program. According to Lochbaum, the NRC assured him that ANO was “the only plant in the country with an ineffective flood protection walkdown.”

But in January 2014, rains hit Florida’s Atlantic coast (“Not a monsoon or a once-in-a-blue-moon rain, but a thunderstorm,” Lochbaum said). At the St. Lucie Nuclear Power Plant, 70 miles north of Palm Beach, faulty storm drains caused a 55,000-gallon flood in an auxiliary building. Water penetrated improperly sealed electrical pass-throughs, disabling pumps needed for cooling one of the facility’s two reactors. “The penetration was about five feet off the floor—at eye level during a walkdown, had anybody only been looking,” wrote Lochbaum in an email.

“So, AFTER owners conducted NRC-mandated flood protection walkdowns, and AFTER the owners formally notified the NRC that flood-protection measures were adequate, those assurances were proven false by actual flooding,” Lochbaum wrote. “Apparently,” Lochbaum’s email surmised, “the walkdowns had been more for exercise than for verification of safety.”

The NRC’s industry-friendly approach also troubles Judson. The NIRS director detailed the case of New York’s Nine Mile Point—on the banks of Lake Ontario, 40 miles north of Syracuse—a site that is home to three nuclear reactors, including the oldest still-operating commercial reactor in the US (Nine Mile Point 1, which was commissioned in December 1969). Just last year, a swelling Lake Ontario came within a foot of triggering an “unusual event” (the NRC’s first level of emergency notification). Exelon, the facility’s owner, sprung to action—and applied to the NRC to change the standards so it wouldn’t have to declare an emergency unless the site was so flooded that workers couldn’t access the site by car.

That change was quickly approved by the NRC—an alarming lack of oversite, according to Judson, given the potential for widespread environmental disaster. “Lake Ontario is the drinking-water source for 9 million people,” he said.

* * *

In addition to the examples above, there are a number of sites that worry the experts—among them: Quad Cities Nuclear Generating Station, in Northern Illinois, on the banks of the Mississippi River, Dresden Generating Station, 60 miles southwest of Chicago, at the head of the Illinois River, and Pilgrim Nuclear Power Station in Plymouth, Massachusetts, on the shores of Cape Cod Bay, less than 40 miles south of Boston. What these sites have in common, beyond their remarkable age (online 46 years, the reactors at Quad Cities are the youngest of this group), is their acute vulnerability to the perils of a warming planet.

Riverine flooding, more frequent and more severe this century and unrelated to any dam failures, leave Quad Cities and Dresden in a precarious place almost annually. (Precipitation in this region is expected to increase 37 percent by 2070, according to a NOAA—National Oceanic and Atmospheric Administration—study.) For Pilgrim, a facility that has seen numerous weather-related shutdowns in recent years, a category 5 hurricane could elevate sea level by 22.4 feet, according to plant-owner Entergy—giving the hundreds of tons of irradiated fuel stored outside in concrete and steel “dry casks” about two-and-a-half feet of clearance. But when conservative estimates project a general sea-level rise in the Bay of three feet by 2065, and possibly six feet by the end of the century, the site has less than no margin for error.

Even a partial submersion of a dry cask could block vents, interrupting its convection-dependent cooling mechanism, according to Kevin Kamps, radioactive waste specialist at clean-energy advocacy group Beyond Nuclear. Depending how long this went on, the integrity of the fuel and the steel liner could be affected.

But of course, as perilous as it is for the casks, lined up on a concrete pad less than a football field’s length from the shore, the plight of Pilgrim’s spent fuel pool, filled to over three times its design capacity, worries watchdogs more. Like with all the other reactors, a prolonged interruption of power means a “loss of cooling accident” (LOCA—yes, this has an acronym, too), with limited time before the tightly packed fuel assemblies boiled off their pool and caught fire, potentially covering northern New England with many times the amount of radioactive cesium-137 released by the Chernobyl disaster.

Pilgrim is scheduled to go offline for good this spring, but the spent fuel is expected to remain on site for decades. This was troubling enough to Senator Edward Markey that he contacted the NRC last April asking how the Commission will factor in global warming. “It is imperative,” the Massachusetts Democrat wrote, “that these plants and the NRC regulations fully consider the impacts of climate change on dangerous nuclear waste.”

* * *

As far as the NRC is concerned, it has. “Every US reactor site performs relevant analyses based on location-specific parameters,” wrote the NRC’s Burnell in response to my question about the regulator’s assessment of climate-based changes in risk. In practice that means that predictions for things like precipitation and sea level rise are factored back into the NRC’s models for assessing credible risk. Well. . . sort of.

“My sense is there’s really no uniform methodology,” said Criscione. As to NRC requirements for what needs to be in an assessment, say, for flood risk, Criscione told me, “it’s more of a style guide.”

This wasn’t always the case. “The NRC used to have more deterministic standards,” said Judson, “and there’s a debate to be had about whether that regulatory process was better at safety outcomes than the one they’ve adopted since.” Before about 20 years ago, the process, according to Judson, was more open to the public. “There was a time when the public was able to raise safety allegations with the NRC,” he said, noting instances at several reactors in New England. “The NRC was forced by public acrimony, and in some cases by Congress to step in and regulate.”

Today, under what is called “probabilistic risk assessment,” nuclear plants are expected to meet performance metrics, and that is then weighted with “risk-informed regulation”—the system that evaluates whether a threat is credible enough to merit safety upgrades.

The shift wasn’t just academic. Under deterministic assessment, reactors in Connecticut, Illinois, Maine, and Oregon were taken permanently offline or forced to make significant improvements. But that era, Judson told me, “is largely gone.”

“There were no reactor closures in the US between 1998 and 2013,” he said.

And since 2013, with the shuttering of facilities in Wisconsin, Vermont, California, and New Jersey, as well as Nebraska’s once flood-ravaged Fort Calhoun—and with more expected to close in the next couple of years—could that be evidence of Fukushima-inspired regulatory vigor? Only tangentially. The past decade has also seen a major shift in the energy market. With the fracking boom creating a surplus of natural gas, and the cost of wind and solar generation continuing to fall, nuclear power, which was never able to come anywhere close to its atomic-age promise of being “too cheap to meter,” grew increasingly uncompetitive.

What would have been an affordable safety upgrade 10 years ago is now financially untenable. “Regulations that would have been something minor in the 2008 timeframe, would certainly shut down a plant today in some markets,” Criscione told me, adding, “I think the agency has recognized that, and I think they’ve kind of caved in to some of the economic pressure that the utilities are seeing.”

“Ultimately, it almost always comes down to money,” agreed Judson. “If it passes the ‘credible’ threshold level, the NRC will determine the possible impact of the event and weigh that against what the cost of remedying it or preventing it would be—and they make a determination from that point about whether the cost is justified.”

The NRC, for its part, rejects the views of the whistleblower and the watchdog. “Plant costs were not taken into consideration” on “post-Fukushima Orders,” wrote Burnell, and “none of the plants that have recently either permanently shut down, or have announced plans to do so, asked for financial-based relief from post-Fukushima requirements.”

Except that they have. Pretty explicitly. And it was granted. Pretty explicitly.

Almost exactly a year before Burnell sent me his statement, the NRC granted a request by Entergy to waive post-Fukushima requirements for their Pilgrim nuclear plant, including improvements to vents that could potentially relieve reactor core pressure in the case of a loss-of-power/loss-of-cooling event, new seismic regulations, and, of special note here, new flooding regulations. All this for a plant identical in design to the failed reactors at Fukushima, a plant that is one of the three-worst rated in the US, and a plant that was revealed in a leaked 2016 internal inspection memo to have a staff that is “overwhelmed by just trying to run the station.”

The NRC will counter that Pilgrim’s “operational lifespan”—Entergy has announced plans to shut it down by June—is too short to complete the upgrades. But the Commission granted Pilgrim a 20-year license extension in 2012, meaning regulators and plant operators had thought plant operations could continue through 2032. The reason the plant is shuttering early is because Entergy felt it was not financially viable to maintain it.

Strangely, though, at the same time Entergy was told it would not have to invest in post-Fukushima safety improvements, Pilgrim was starting an expensive refueling cycle, which can require hundreds of extra plant workers and take the plant off line for a month. If regulators had declined to grant the waiver, if Pilgrim had been required to begin plant upgrades to stay open, would Entergy have spent on a refueling that gives their reactor an extra two years of generating power?

Mary Lampert, a longtime environmental activist and the director of Pilgrim Watch, told the Boston Globe in 2017 that the NRC was making an industry-friendly gamble. “Sadly, it’s financial safety rather than public safety,” she said.

* * *

It’s a ratio that bears all the hallmarks of what is called “regulatory capture”—a government agency so close to the commercial sector it regulates that it considers the industry’s interests over the public’s. But with the NRC, it goes a step further.

“Unlike many other federal agencies, the NRC’s continuation is dependent on the perpetuation of its industry,” said Judson. “If nuclear power goes out of business, and reactors shut down, the NRC’s mission starts to drain away.”

(Of course, if the NRC took an interest in nuclear plant decommissioning, they’d have at least another fifty years of work to do. But that is clearly not their inclination.

“The NRC staff concluded that there is no need for regulatory action at decommissioning reactors in light of lessons learned from the Fukushima accident,” wrote Burnell.

Judson put it more starkly: “There is no oversite” at a non-generating plant. “During decommissioning, there are basically no inspections by NRC.”

“Something really bad would have to happen for NRC to send inspectors to a decommission,” he said.)

Perhaps nothing demonstrates the regulator’s deference to the industry in the post-Fukushima era quite like something called FLEX (which is amazingly, despite it always being spelled with all caps, not an acronym). “FLEX,” as the NRC’s Burnell explained to me in an email, “is the industry term for its approach to complying with the NRC’s Mitigation Strategies Order of March 2012 … which the NRC has reviewed and found acceptable.”

But another way to look at FLEX is the way watchdog Judson does: “The thing that the NRC has allowed that the industry is taking credit for, but that aren’t actually real requirements.”

FLEX, as loosely explained in an illustrated web page from the NRC, allows nuclear plant operators to meet LOOP events with three phases of emergency equipment. The first involves the batteries and diesel-powered generators that are part of the backup systems at most US plants—the systems that failed so dramatically at Fukushima Daiichi (as discussed, Oconee does not use diesel generators, relying instead on hydroelectric power from nearby Keowee Dam). The second is portable equipment stored on-site at a nuclear plant that is supposed to take over when the phase one, design-basis backups fail or are exhausted. The third phase of FLEX, according to the NRC-sanctioned industry plan, is backup equipment stored off site, at two industry-maintained “response centers” in Memphis, Tennessee, and Phoenix, Arizona, which can be moved to a faltering reactor “within 24 hours.”

“It’s the sort of thing where OK, sure, it might be value added,” Judson said, “but it’s not part of the design basis of the reactor, and not part of what the NRC can easily regulate.” In fact, while Burnell told me the NRC has inspected the response centers, that is not the same thing as it having to meet an agency rule.

“It’s not a requirement,” Judson observed, “it’s something that [the industry’s] doing voluntarily outside of the regulations.”

And the moving of that equipment to a troubled site also exists outside the regulatory process. “The industry has established standing contracts to airlift phase three cargo to airports close to reactors, and additional contracts (including helicopters) to bring the phase three cargo to a site,” said the NRC’s Burnell, again relying on industry assurances. (And when asked for clarification, Burnell told me that the cargo aircraft were all private contractors, while the helicopters could be private or military, depending on the nuclear facility.)

When I questioned the 24-hour allowance (given that the Fukushima example and the industry’s own projections at Oconee show core damage starting in as few as eight hours after a loss of power), Burnell wrote, “Each plant has determined how long they have to get phase three resupply to the site.” Asked about the possibility of a large-scale, fast-moving weather event affecting multiple nuclear facilities (as was the case with 2012’s Hurricane Sandy), Burnell seemed even more certain: “Cargo aircraft flights from Memphis to East Coast sites will certainly get phase three to the sites in a timely manner, and plant response procedures account for the additional flight time from Phoenix if necessary.”

If only the weather—or a disaster-battered infrastructure, or an overstretched private contractor—could be as sanguine. “It’s very easy to imagine situations where bringing in equipment from off site is just not going to be feasible,” Judson said.

Criscione referenced his analysis of Oconee in the event of a breach of Jocassee Dam, where all four bridges used to access the plant are expected to fail. Looking at Duke Energy’s promise to bring in emergency backup equipment from off site, he said, “I don’t think it’s realistic. There’s a path to success, but I think the odds are slim.”

* * *

But Criscione’s analysis doesn’t, by his account, carry as much weight inside his agency since he blew the whistle on flood preparedness to the NRC commissioners and Congress. “I’m less effective than when I brought the issues forward,” he said. “I’m certainly not invited to the same meetings that I was in the past.”

And Criscione thinks the problem is agency-wide. “People who draw a harder line on the industry have been less involved,” he said, tracing the change to about 2012, when battles over post-Fukushima regulations precipitated a change in the NRC’s chair, and the Japan Lessons-Learned Division took over a lot of the oversite of emergency preparedness and mitigation.

Today, even the JLD has disappeared, absorbed into another spoonful of alphabet soup, the NRR (the Office of Nuclear Reactor Regulation). “Post-Fukushima activities,” Burnell told me, “have been formalized to the point where the agency’s routine reactor oversite is appropriately tracking compliance.”

But to hear critics tell it, appropriateness is in the eye of the beholder. Seven years after the earthquake and tsunami that turned “Fukushima” into disaster shorthand, “things have been done,” said Judson, “I’m not sure I’d say that they’re adequate.”

“A lot of the things that they came up with after evaluating what happened at Fukushima were things that they should have done years before anyway,” he continued. “Now we’ve got emerging threats that the NRC hasn’t dealt with, and that, in all likelihood, it won’t deal with until something bad happens.”

Lochbaum put it this way in an email: “US nuclear power plants are adequately protected against flooding—unless a flood happens.” In a “worst-case failure of the Jocassee Dam, one would not want to be close to Oconee,” he said. “All three reactors are likely to follow Fukushima’s path and reach its destination.”

For Criscione, the clarion call is coming from the inside the house. “I don’t feel good about Oconee, he told me. “From what I see, we’ve been compromised when it comes to flooding.”

(No version of this story may be reprinted without the express written permission of Gregg Levine.)

The Brief Wondrous Life (and Long Dangerous Half-Life) of Strontium-90

Posted on July 8, 2013 by Gregg Levine

At roughly 5:30 in the morning on July 16, 1945, an implosion-design plutonium device, codenamed “the gadget,” exploded over the Jornada del Muerto desert in south-central New Mexico with a force equivalent to about 20,000 tons of TNT. It was the world’s first test of an atomic bomb, and as witnesses at base camp some ten miles away would soon relay to US President Harry Truman, the results were “satisfactory” and exceeded expectations. Within weeks, the United States would use a uranium bomb of a different design on the Japanese city of Hiroshima, and three days after that, a plutonium device similar to the gadget was dropped on Nagasaki, about 200 miles to the southwest.

Though Hiroshima and Nagasaki are the only instances where atomic weapons were used against a wartime enemy, between 1945 and 1963, the world experienced hundreds upon hundreds of nuclear weapons tests, the great majority of which were above ground or in the sea–in other words, in the atmosphere. The US tested atom and hydrogen bombs in Nevada, at the Nevada Test Site, and in the Pacific Ocean, on and around the Marshall Islands, in an area known as the Pacific Proving Grounds. After the Soviet Union developed its own atomic weapon in 1949, it carried out hundreds of similar explosions, primarily in Kazakhstan, and the UK performed more than 20 of its own atmospheric nuclear tests, mostly in Australia and the South Pacific, between 1952 and 1958.

Though military authorities and officials with the US Atomic Energy Commission initially downplayed the dispersal and dangers of fallout from these atmospheric tests, by the early 1950s, scientists in nuclear and non-nuclear countries alike began to raise concerns. Fallout from atmospheric tests was not contained simply to the blast radius or a region near the explosion, instead the products of fission and un-fissioned nuclear residue were essentially vaporized by the heat and carried up into the stratosphere, sweeping across the globe, and eventually returning to earth in precipitation. A host of radioactive isotopes contaminated land and surface water, entering the food chain through farms and dairies.

The tale of the teeth

In order to demonstrate that fallout was widespread and had worked its way into the population, a group of researchers, headed by Dr. Barry Commoner and Drs. Louise and Eric Reiss, founded the Baby Tooth Survey under the auspices of Washington University (where Commoner then taught) and the St. Louis Citizens’ Committee for Nuclear Information. The tooth survey sought to track strontium-90 (Sr-90), a radioactive isotope of the alkaline earth metal strontium, which occurs as a result–and only as a result–of nuclear fission. Sr-90 is structurally similar to calcium, and so, once in the body, works its way into bones and teeth.

While harvesting human bones was impractical, researchers realized that baby teeth should be readily available. Most strontium in baby teeth would transfer from mother to fetus during pregnancy, and so birth records would provide accurate data about where and when those teeth were formed. The tooth survey collected baby teeth, initially from the St. Louis area, eventually from around the globe, and analyzed them for strontium.

By the early ’60s, the program had collected well over a quarter-million teeth, and ultimately found that children in St. Louis in 1963 had 50 times more Sr-90 in them than children born in 1950. Armed with preliminary results from this survey and a petition signed by thousands of scientists worldwide, Dr. Commoner successfully lobbied President John F. Kennedy to negotiate and sign the Partial Test Ban Treaty, halting atmospheric nuclear tests by the US, UK and USSR. By the end of the decade, strontium-90 levels in newly collected baby teeth were substantially lower than the ’63 samples.

The initial survey, which ended in 1970, continues to have relevance today. Some 85,000 teeth not used in the original project were turned over to researchers at the Radiation and Public Health Project (RPHP) in 2001. The RPHP study, released in 2010, found that donors from the Baby Tooth Survey who had died of cancer before age 50 averaged over twice the Sr-90 in their samples compared with those who had lived past their 50th birthday.

But the perils of strontium-90–or, indeed, a host of radioactive isotopes that are strontium’s travel companions–did not cease with the ban on atmospheric nuclear tests. Many of the hazards of fallout could also be associated with the radiological pollution that is part-and-parcel of nuclear power generation. The controlled fission in a nuclear reactor produces all of the elements created in the uncontrolled fission of a nuclear explosion. This point was brought home by the RPHP work, when it found strontium-90 was 30- to 50-percent higher in baby teeth collected from children born in “nuclear counties,” (PDF) the roughly 40 percent of US counties situated within 100 miles of a nuclear power plant or weapons lab.

Similar baby teeth research has been conducted over the last 30 years in Denmark, Japan and Germany, with measurably similar results. While Sr-90 levels continued to decrease in babies born through the mid 1970s, as the use of nuclear power starts to spread worldwide, that trend flattens. Of particular note, a study conducted by the German section of the International Physicians for the Prevention of Nuclear War (winner of the 1985 Nobel Peace Prize) found ten-times more strontium-90 in the teeth of children born after the 1986 Chernobyl nuclear disaster when compared with samples from 1983.

While radioactive strontium itself can be linked to several diseases, including leukemia and bone cancers, Sr-90, as mentioned above, is but one of the most measurable of many dangerous isotopes released into the environment by the normal, everyday operation of nuclear reactors, even without the catastrophic discharges that come with accidents and meltdowns. Tritium, along with radioactive variants of iodine, cesium and xenon (to name just a few) can often be detected in elevated levels in areas around nuclear facilities.

Epidemiological studies have shown higher risks of breast and prostate cancers for those living in US nuclear counties. But while the Environmental Protection Agency collects sporadic data on the presence of radioactive isotopes such as Sr-90, the exact locations of the sampling sites are not part of the data made available to the general public. Further, while “unusual” venting of radioactive vapor or the dumping of contaminated water from a nuclear plant has to be reported to the Nuclear Regulatory Commission (and even then, it is the event that is reported, not the exact composition of the discharge), the radio-isotopes that are introduced into the environment by the typical operation of a reactor meet with far less scrutiny. In the absence of better EPA data and more stringent NRC oversight, studies like the Baby Tooth Survey and its contemporary brethren are central to the public understanding of the dangers posed by the nuclear power industry.

June and Sr-90: busting out all over

As if to underscore the point, strontium-90 served as the marker for troubling developments on both sides of the Pacific just this June.

In Japan, TEPCO–still the official operator of Fukushima Daiichi–revealed it had found Sr-90 in groundwater surrounding the crippled nuclear plant at “very high” levels. Between December 2012 and May 2013, levels of strontium-90 increased over 100-fold, to 1,000 becquerels per liter–33 times the Japanese limit for the radioactive isotope.

The samples were taken less than 100 feet from the coast. From that point, reports say, the water usually flows out to the Pacific Ocean.

Beyond the concerns raised by the affects of the strontium-90 (and the dangerously high amounts of tritium detected along with it) when the radioactive contamination enters the food chain, the rising levels of Sr-90 likely indicate other serious problems at Fukushima. Most obviously, there is now little doubt that TEPCO has failed to contain contaminated water leaking from the damaged reactor buildings–contrary to the narrative preferred by company officials.

But skyrocketing levels of strontium-90 could also suggest that the isotope is still being produced–that nuclear fission is still occurring in one or more of the damaged reactor cores. Or even, perhaps, outside the reactors, as the corium (the term for the molten, lava-like nuclear fuel after a meltdown) in as many as three units is believed to have melted through the steel reactor containment and possibly eroded the concrete floor, as well.

An ocean away, in Washington state, radiological waste, some of which dates back to the manufacture of those first atom bombs, sits in aging storage tanks at the Hanford Nuclear Reservation–and some of those tanks are leaking.

In truth, tanks at Hanford, considered by many the United States’ most contaminated nuclear site, have been leaking for some time. But the high-level radioactive waste in some of the old, single-wall tanks had been transferred to newer, double-walled storage, which was supposed to provide better containment. On June 20, however, the US Department of Energy reported that workers at Hanford detected radioactive contamination–specifically Sr-90–outside one of the double-walled tanks, possibly suggesting a breach. The predominant radionuclides in the 850,000-gallon tank are reported to be strontium-90 and cesium-137.

The tank, along with hundreds of others, sits about five miles from the Columbia River, water source for much of the region. Once contamination leaks from the tanks, it mixes with ground water, and, in time, should make its way to the river. “I view this as a crisis,” said Tom Carpenter, executive director of the watchdog group Hanford Challenge, “These tanks are not supposed to fail for 50 years.”

Destroyer of worlds

In a 1965 interview, J. Robert Oppenheimer, the Manhattan Project’s science director who was in charge of the Los Alamos facility that developed the first atomic bombs, looked back twenty years to that July New Mexico morning:

We knew the world would not be the same. A few people laughed, a few people cried. Most people were silent. I remembered the line from the Hindu scripture, the Bhagavad-Gita; Vishnu is trying to persuade the Prince that he should do his duty and, to impress him, takes on his multi-armed form and says, “Now I am become Death, the destroyer of worlds.” I suppose we all thought that, one way or another.

“We knew the world would not be the same.” Oppenheimer was most likely speaking figuratively, but, as it turns out, he also reported a literal truth. Before July 16, 1945, there was no strontium-90 or cesium-137 in the atmosphere–it simply did not exist in nature. But ever since that first atomic explosion, these anthropogenic radioactive isotopes have been part of earth’s every turn.

Strontium-90–like cesium-137 and a catalog of other hazardous byproducts of nuclear fission–takes a long time to decay. The detritus of past detonations and other nuclear disasters will be quite literally with us–in our water and soil, in our tissue and bone–for generations. These radioactive isotopes have already been linked to significant suffering, disease and death. Their danger was acknowledged by the United States when JFK signed the 1963 Test Ban Treaty. Now would be a good time to acknowledge the perspicacity of that president, phase out today’s largest contributors of atmospheric Sr-90, nuclear reactors, and let the sun set on this toxic metal’s life.

A version of this story previously appeared on Truthout; no version may be reprinted without permission.

Two Years On, Fukushima Raises Many Questions, Provides One Clear Answer

Posted on April 6, 2013 by Gregg Levine

Fukushima’s threats to health and the environment continue. (graphic: Surian Soosay via flickr)

You can’t say you have all the answers if you haven’t asked all the questions. So, at a conference on the medical and ecological consequences of the Fukushima nuclear disaster, held to commemorate the second anniversary of the earthquake and tsunami that struck northern Japan, there were lots of questions. Questions about what actually happened at Fukushima Daiichi in the first days after the quake, and how that differed from the official report; questions about what radionuclides were in the fallout and runoff, at what concentrations, and how far they have spread; and questions about what near- and long-term effects this disaster will have on people and the planet, and how we will measure and recognize those effects.

A distinguished list of epidemiologists, oncologists, nuclear engineers, former government officials, Fukushima survivors, anti-nuclear activists and public health advocates gathered at the invitation of The Helen Caldicott Foundation and Physicians for Social Responsibility to, if not answer all these question, at least make sure they got asked. Over two long days, it was clear there is much still to be learned, but it was equally clear that we already know that the downsides of nuclear power are real, and what’s more, the risks are unnecessary. Relying on this dirty, dangerous and expensive technology is not mandatory–it’s a choice. And when cleaner, safer, and more affordable options are available, the one answer we already have is that nuclear is a choice we should stop making and a risk we should stop taking.

“No one died from the accident at Fukushima.” This refrain, as familiar as multiplication tables and sounding about as rote when recited by acolytes of atomic power, is a close mirror to versions used to downplay earlier nuclear disasters, like Chernobyl and Three Mile Island (as well as many less infamous events), and is somehow meant to be the discussion-ender, the very bottom-line of the bottom-line analysis that is used to grade global energy options. “No one died” equals “safe” or, at least, “safer.” Q.E.D.

But beyond the intentional blurring of the differences between an “accident” and the probable results of technical constraints and willful negligence, the argument (if this saw can be called such) cynically exploits the space between solid science and the simple sound bite.

“Do not confuse narrowly constructed research hypotheses with discussions of policy,” warned Steve Wing, Associate Professor of Epidemiology at the University of North Carolina’s Gillings School of Public Health. Good research is an exploration of good data, but, Wing contrasted, “Energy generation is a public decision made by politicians.”

Surprisingly unsurprising

A public decision, but not necessarily one made in the public interest. Energy policy could be informed by health and environmental studies, such as the ones discussed at the Fukushima symposium, but it is more likely the research is spun or ignored once policy is actually drafted by the politicians who, as Wing noted, often sport ties to the nuclear industry.

The link between politicians and the nuclear industry they are supposed to regulate came into clear focus in the wake of the March 11, 2011 Tohoku earthquake and tsunami–in Japan and the United States.

The boiling water reactors (BWRs) that failed so catastrophically at Fukushima Daiichi were designed and sold by General Electric in the 1960s; the general contractor on the project was Ebasco, a US engineering company that, back then, was still tied to GE. General Electric had bet heavily on nuclear and worked hand-in-hand with the US Atomic Energy Commission (AEC–the precursor to the NRC, the Nuclear Regulatory Commission) to promote civilian nuclear plants at home and abroad. According to nuclear engineer Arnie Gundersen, GE told US regulators in 1965 that without quick approval of multiple BWR projects, the giant energy conglomerate would go out of business.

It was under the guidance of GE and Ebasco that the rocky bluffs where Daiichi would be built were actually trimmed by 10 meters to bring the power plant closer to the sea, the water source for the reactors’ cooling systems–but it was under Japanese government supervision that serious and repeated warnings about the environmental and technological threats to Fukushima were ignored for another generation.

Failures at Daiichi were completely predictable, observed David Lochbaum, the director of the Nuclear Safety Project at the Union of Concerned Scientists, and numerous upgrades were recommended over the years by scientists and engineers. “The only surprising thing about Fukushima,” said Lochbaum, “is that no steps were taken.”

The surprise, it seems, should cross the Pacific. Twenty-two US plants mirror the design of Fukushima Daiichi, and many stand where they could be subject to earthquakes or tsunamis. Even without those seismic events, some US plants are still at risk of Fukushima-like catastrophic flooding. Prior to the start of the current Japanese crisis, the Nuclear Regulatory Commission learned that the Oconee Nuclear Plant in Seneca, South Carolina, was at risk of a major flood from a dam failure upstream. In the event of a dam breach–an event the NRC deems more likely than the odds that were given for the 2011 tsunami–the flood at Oconee would trigger failures at all four reactors. Beyond hiding its own report, the NRC has taken no action–not before Fukushima, not since.

The missing link

But it was the health consequences of nuclear power–both from high-profile disasters, as well as what is considered normal operation–that dominated the two days of presentations at the New York Academy of Medicine. Here, too, researchers and scientists attempted to pose questions that governments, the nuclear industry and its captured regulators prefer to ignore, or, perhaps more to the point, omit.

Dr. Hisako Sakiyama, a member of the Fukushima Nuclear Accident Independent Investigation Commission, has been studying the effects of low-dose radiation. Like others at the symposium, Dr. Sakiyama documented the linear, no-threshold risk model drawn from data across many nuclear incidents. In essence, there is no point at which it can be said, “Below this amount of radiation exposure, there is no risk.” And the greater the exposure, the greater the risk of health problems, be they cancers or non-cancer diseases.

Dr. Sakiyama contrasted this with the radiation exposure limits set by governments. Japan famously increased what it called acceptable exposure quite soon after the start of the Fukushima crisis, and, as global background radiation levels increase as a result of the disaster, it is feared this will ratchet up what is considered “safe” in the United States, as the US tends to discuss limits in terms of exposure beyond annual average background radiation. Both approaches lack credibility and expose an ugly truth. “Debate on low-dose radiation risk is not scientific,” explained Sakiyama, “but political.”

And the politics are posing health and security risks in Japan and the US.

Akio Matsumura, who spoke at the Fukushima conference in his role as founder of the Global Forum of Spiritual and Parliamentary Leaders for Human Survival, described a situation at the crippled Japanese nuclear plant that is much more perilous, even today, than leaders are willing to acknowledge. Beyond the precarious state of the spent fuel pool above reactor four, Matsumura also cited the continued melt-throughs of reactor cores (which could lead to a steam explosion), the high levels of radiation at reactors one and three (making any repairs impossible), and the unprotected pipes retrofitted to help cool reactors and spent fuel. “Probability of another disaster,” Matsumura warned, “is higher than you think.”

Matsumura lamented that investigations of both the technical failures and the health effects of the disaster are not well organized. “There is no longer a link between scientists and politicians,” said Matsumura, adding, “This link is essential.”

The Union of Concerned Scientists’ Lochbaum took it further. “We are losing the no-brainers with the NRC,” he said, implying that what should be accepted as basic regulatory responsibility is now subject to political debate. With government agencies staffed by industry insiders, “the deck is stacked against citizens.”

Both Lochbaum and Arnie Gundersen criticized the nuclear industry’s lack of compliance, even with pre-Fukushima safety requirements. And the industry’s resistance undermines nuclear’s claims of being competitive on price. “If you made nuclear power plants meet existing law,” said Gundersen, “they would have to shut because of cost.”

But without stronger safety rules and stricter enforcement, the cost is borne by people instead.

Determinate data, indeterminate risk

While the two-day symposium was filled with detailed discussions of chemical and epidemiologic data collected throughout the nuclear age–from Hiroshima through Fukushima–a cry for more and better information was a recurring theme. In a sort of wily corollary to “garbage in, garbage out,” experts bemoaned what seem like deliberate holes in the research.

Even the long-term tracking study of those exposed to the radiation and fallout in Japan after the atomic blasts at Hiroshima and Nagasaki–considered by many the gold-standard in radiation exposure research because of the large sample size and the long period of time over which data was collected–raises as many questions as it answers.

The Hiroshima-Nagasaki data was referenced heavily by Dr. David Brenner of the Center for Radiological Research, Columbia University College of Physicians and Surgeons. Dr. Brenner praised the study while using it to buttress his opinion that, while harm from any nuclear event is unfortunate, the Fukushima crisis will result in relatively few excess cancer deaths–something like 500 in Japan, and an extra 2,000 worldwide.

“There is an imbalance of individual risk versus overall anxiety,” said Brenner.

But Dr. Wing, the epidemiologist from the UNC School of Public Health, questioned the reliance on the atom bomb research, and the relatively rosy conclusions those like Dr. Brenner draw from it.

“The Hiroshima and Nagasaki study didn’t begin till five years after the bombs were dropped,” cautioned Wing. “Many people died before research even started.” The examination of cancer incidence in the survey, Wing continued, didn’t begin until 1958–it misses the first 13 years of data. Research on “Black Rain” survivors (those who lived through the heavy fallout after the Hiroshima and Nagasaki bombings) excludes important populations from the exposed group, despite those populations’ high excess mortality, thus driving down reported cancer rates for those counted.

The paucity of data is even more striking in the aftermath of the Three Mile Island accident, and examinations of populations around American nuclear power plants that haven’t experienced high-profile emergencies are even scarcer. “Studies like those done in Europe have never been done in the US,” said Wing with noticeable regret. Wing observed that a German study has shown increased incidences of childhood leukemia near operating nuclear plants.

There is relatively more data on populations exposed to radioactive contamination in the wake of the Chernobyl nuclear accident. Yet, even in this catastrophic case, the fact that the data has been collected and studied owes much to the persistence of Alexey Yablokov of the Russian Academy of Sciences. Yablokov has been examining Chernobyl outcomes since the early days of the crisis. His landmark collection of medical records and the scientific literature, Chernobyl: Consequences of the Catastrophe for People and the Environment, has its critics, who fault its strong warnings about the long-term dangers of radiation exposure, but it is that strident tone that Yablokov himself said was crucial to the evolution of global thinking about nuclear accidents.

Because of pressure from the scientific community and, as Yablokov stressed at the New York conference, pressure from the general public, as well, reaction to accidents since Chernobyl has evolved from “no immediate risk,” to small numbers who are endangered, to what is now called “indeterminate risk.”

Calling risk “indeterminate,” believe it or not, actually represents a victory for science, because it means more questions are asked–and asking more questions can lead to more and better answers.

Yablokov made it clear that it is difficult to estimate the real individual radiation dose–too much data is not collected early in a disaster, fallout patterns are patchy and different groups are exposed to different combinations of particles–but he drew strength from the volumes and variety of data he’s examined.

Indeed, as fellow conference participant, radiation biologist Ian Fairlie, observed, people can criticize Yablokov’s advocacy, but the data is the data, and in the Chernobyl book, there is lots of data.

Complex and consequential

Data presented at the Fukushima symposium also included much on what might have been–and continues to be–released by the failing nuclear plant in Japan, and how that contamination is already affecting populations on both sides of the Pacific.

Several of those present emphasized the need to better track releases of noble gasses, such as xenon-133, from the earliest days of a nuclear accident–both because of the dangers these elements pose to the public and because gas releases can provide clues to what is unfolding inside a damaged reactor. But more is known about the high levels of radioactive iodine and cesium contamination that have resulted from the Fukushima crisis.

In the US, since the beginning of the disaster, five west coast states have measured elevated levels of iodine-131 in air, water and kelp samples, with the highest airborne concentrations detected from mid-March through the end of April 2011. Iodine concentrates in the thyroid, and, as noted by Joseph Mangano, director of the Radiation and Public Health Project, fetal thyroids are especially sensitive. In the 15 weeks after fallout from Fukushima crossed the Pacific, the western states reported a 28-percent increase in newborn (congenital) hypothyroidism (underactive thyroid), according to the Open Journal of Pediatrics. Mangano contrasted this with a three-percent drop in the rest of the country during the same period.

The most recent data from Fukushima prefecture shows over 44 percent of children examined there have thyroid abnormalities.

Of course, I-131 has a relatively short half-life; radioactive isotopes of cesium will have to be tracked much longer.

With four reactors and densely packed spent fuel pools involved, Fukushima Daiichi’s “inventory” (as it is called) of cesium-137 dwarfed Chernobyl’s at the time of its catastrophe. Consequently, and contrary to some of the spin out there, the Cs-137 emanating from the Fukushima plant is also out-pacing what happened in Ukraine.

Estimates put the release of Cs-137 in the first months of the Fukushima crisis at between 64 and 114 petabecquerels (this number includes the first week of aerosol release and the first four months of ocean contamination). And the damaged Daiichi reactors continue to add an additional 240 million becquerels of radioactive cesium to the environment every single day. Chernobyl’s cesium-137 release is pegged at about 84 petabecquerels. (One petabecquerel equals 1,000,000,000,000,000 becquerels.) By way of comparison, the nuclear “device” dropped on Hiroshima released 89 terabecquerels (1,000 terabecquerels equal one petabecquerel) of Cs-137, or, to put it another way, Fukushima has already released more than 6,400 times as much radioactive cesium as the Hiroshima bomb.

The effects of elevated levels of radioactive cesium are documented in several studies across post-Chernobyl Europe, but while the implications for public health are significant, they are also hard to contain in a sound bite. As medical genetics expert Wladimir Wertelecki explained during the conference, a number of cancers and other serious diseases emerged over the first decade after Chernobyl, but the cycles of farming, consuming, burning and then fertilizing with contaminated organic matter will produce illness and genetic abnormalities for many decades to come. Epidemiological studies are only descriptive, Wertelecki noted, but they can serve as a “foundation for cause and effect.” The issues ahead for all of those hoping to understand the Fukushima disaster and the repercussions of the continued use of nuclear power are, as Wertelecki pointed out, “Where you study and what you ask.”

One of the places that will need some of the most intensive study is the Pacific Ocean. Because Japan is an island, most of Fukushima’s fallout plume drifted out to sea. Perhaps more critically, millions of gallons of water have been pumped into and over the damaged reactors and spent fuel pools at Daiichi, and because of still-unplugged leaks, some of that water flows into the ocean every day. (And even if those leaks are plugged and the nuclear fuel is stabilized someday, mountain runoff from the area will continue to discharge radionuclides into the water.) Fukushima’s fisheries are closed and will remain so as far into the future as anyone can anticipate. Bottom feeders and freshwater fish exhibit the worst levels of cesium, but they are only part of the picture. Ken Beusseler, a marine scientist at Woods Hole Oceanographic Institute, described a complex ecosystem of ocean currents, food chains and migratory fish, some of which carry contamination with them, some of which actually work cesium out of their flesh over time. The seabed and some beaches will see increases in radio-contamination. “You can’t keep just measuring fish,” warned Beusseler, implying that the entire Pacific Rim has involuntarily joined a multidimensional long-term radiation study.

For what it’s worth

Did anyone die as a result of the nuclear disaster that started at Fukushima Daiichi two years ago? Dr. Sakiyama, the Japanese investigator, told those assembled at the New York symposium that 60 patients died while being moved from hospitals inside the radiation evacuation zone–does that count? Joseph Mangano has reported on increases in infant deaths in the US following the arrival of Fukushima fallout–does that count? Will cancer deaths or future genetic abnormalities, be they at the low or high end of the estimates, count against this crisis?

It is hard to judge these answers when the question is so very flawed.

As discussed by many of the participants throughout the Fukushima conference, a country’s energy decisions are rooted in politics. Nuclear advocates would have you believe that their favorite fuel should be evaluated inside an extremely limited universe, that there is some level of nuclear-influenced harm that can be deemed “acceptable,” that questions stem from the necessity of atomic energy instead of from whether civilian nuclear power is necessary at all.

The nuclear industry would have you do a cost-benefit analysis, but they’d get to choose which costs and benefits you analyze.

While all this time has been and will continue to be spent on tracking the health and environmental effects of nuclear power, it isn’t a fraction of a fraction of the time that the world will be saddled with fission’s dangerous high-level radioactive trash (a problem without a real temporary storage program, forget a permanent disposal solution). And for all the money that has been and will continue to be spent compiling the health and environmental data, it is a mere pittance when compared with the government subsidies, liability waivers and loan guarantees lavished upon the owners and operators of nuclear plants.

Many individual details will continue to emerge, but a basic fact is already clear: nuclear power is not the world’s only energy option. Nor are the choices limited to just fossil and fissile fuels. Nuclear lobbyists would love to frame the debate–as would advocates for natural gas, oil or coal–as cold calculations made with old math. But that is not where the debate really resides.

If nuclear reactors were the only way to generate electricity, would 500 excess cancer deaths be acceptable? How about 5,000? How about 50,000? If nuclear’s projected mortality rate comes in under coal’s, does that make the deaths–or the high energy bills, for that matter–more palatable?

As the onetime head of the Tennessee Valley Authority, David Freeman, pointed out toward the end of the symposium, every investment in a new nuclear, gas or coal plant is a fresh 40-, 50-, or 60-year commitment to a dirty, dangerous and outdated technology. Every favor the government grants to nuclear power triggers an intense lobbying effort on behalf of coal or gas, asking for equal treatment. Money spent bailing out the past could be spent building a safer and more sustainable future.

Nuclear does not exist in a vacuum; so neither do its effects. There is much more to be learned about the medical and ecological consequences of the Fukushima nuclear disaster–but that knowledge should be used to minimize and mitigate the harm. These studies do not ask and are not meant to answer, “Is nuclear worth it?” When the world already has multiple alternatives–not just in renewable technologies, but also in conservation strategies and improvements in energy efficiency–the answer is already “No.”

A version of this story previously appeared on Truthout; no version may be reprinted without permission.

Fukushima Plus Two: Still the Beginning?

Posted on March 11, 2013 by Gregg Levine

An IAEA inspector examines the remains of reactor 3 at Fukushima Daiichi (5/27/11) (photo: Greg Webb/IAEA imagebank)

I was up working in what were in my part of the world the early morning hours of March 11, 2011, when I heard over the radio that a massive earthquake had struck northeastern Japan. I turned on the TV just in time to see the earliest pictures of the tsunami that followed what became known as the Tohoku quake. The devastation was instantly apparent, and reports of high numbers of casualties seemed inevitable, but it wasn’t until a few hours later, when news of the destruction and loss of power at the Fukushima Daiichi nuclear plant hit the English-language airwaves, that I was gripped by a real sense of despair.

I was far from a nuclear expert at the time, but I knew enough to know that without intact cooling systems, or the power to keep them running, and with the added threat of a containment breach, some amount of environmental contamination was certain, and the potential for something truly terrifying was high.

What started as a weekend of watching newswires and live streams, virtually around the clock, and posting basic tech and health questions on email lists, expanded as the Fukushima crisis itself grew. Two years later, I have written tens of thousands of words, and read hundreds of thousands more. I have learned much, but I think I have only scratched the surface.

We all might be a little closer to understanding what happened in those first days and weeks after the earthquake, but what has happened since is still, sadly, a story where much must be written. What the Daiichi plant workers really went through in those early days is just now coming to light, and the tales of intrigue and cover-up, of corruption and captured government, grow more complex and more sinister with each revelation. But what has happened to the environment, not just in the government-cordoned evacuation zone, but also throughout Japan, across the Pacific, and around the world, will likely prove the most chilling narrative.

Radiation levels in the quarantined parts of Japan are still far too high to permit any kind of human re-habitation, but exposure rates in areas far outside that radius are also well above what would have been considered acceptable before this disaster. And water, used to cool the molten cores and damaged spent fuel pools at Fukushima Daiichi, now dangerously radioactive itself, continues to leak into the ground and into the ocean at unprecedented rates.

Alas, the efforts of the Japanese government seem more focused on limiting the information, quieting dissent, and sharing the pain (by shipping radioactive detritus across the country for disposal and incineration), than it is on stopping the leaks, cleaning up the contamination, and eliminating future risks. Though originally pledged to quickly turn away from all nuclear power, a change of government in Japan has revived the incestuous relationship between the nuclear industry and the bureaucrats and politicians who are supposed to police it.

Across the Pacific, the United States has not exactly bathed itself in glory, either. Within days of the news of the explosions at Fukushima, President Barack Obama was the rare world leader that made a point of publicly assuring the nuclear industry that America’s commitment to this dangerous energy source was still strong. Just months after the start of the crisis, information on airborne radiation samples from across the country became less accessible to the public. And while industrialized countries like Germany work to phase out their nuclear plants, the US Nuclear Regulatory Commission actually approved construction of new reactors, and the federal government is poised to backstop the baldly risky investment to the tune of $8.3 billon.

But most disturbing of all, of course, will be the stories of the people. First, the stories we will hear from the families in Japan exposed to the toxic fallout in the immediate aftermath of the initial containment breaches and explosions–stories we are already hearing of children with severe thyroid abnormalities. But soon, and likely for decades to come, the stories of cancers and immune disorders, of birth defects and health challenges, elevated not only in northern Japan, but perhaps across the northern hemisphere.

Two years after the earthquake and tsunami, it is not the beginning of the end of this disaster, and, with apologies to Winston Churchill, it may not even be the end of the beginning. The spent fuel pool at Daiichi reactor 4 remains in precarious shape, and the state of the three molten cores is still shrouded in mystery. Radioactive dust and grime blanket large parts of Japan with no serious plan to remove it, and the waters off the northeast coast continue to absorb irradiated runoff, putting an entire aquatic food chain in peril.

On this second anniversary of the start of the Fukushima crisis, let us honor those who have suffered so far, review what we have learned to date, and endeavor to understand what is likely to come. But, most of all, let us renew our commitment to breaking with this dirty, dangerous and expensive technology.

* * *

To this end, on March 11 and 12, I will be attending a symposium at the New York Academy of Medicine, “The Medical and Ecological Consequences of the Fukushima Nuclear Accident,” sponsored by the Helen Caldicott Foundation and Physicians for Social Responsibility. If you are in the New York area, there is still space available; if you want to watch online, the organizers have promised a live stream. More information can be found on the Caldicott Foundation website.

The Long, Long Con: Seventy Years of Nuclear Fission; Thousands of Centuries of Nuclear Waste

Posted on January 28, 2013 by Gregg Levine

From here to eternity: a small plaque on the campus of the University of Chicago commemorates the site of Fermi’s first atomic pile–and the start of the world’s nuclear waste problem. (Photo: Nathan Guy via Flickr)

On December 2, 1942, a small group of physicists under the direction of Enrico Fermi gathered on an old squash court beneath Alonzo Stagg Stadium on the Campus of the University of Chicago to make and witness history. Uranium pellets and graphite blocks had been stacked around cadmium-coated rods as part of an experiment crucial to the Manhattan Project–the program tasked with building an atom bomb for the allied forces in WWII. The experiment was successful, and for 28 minutes, the scientists and dignitaries present observed the world’s first manmade, self-sustaining nuclear fission reaction. They called it an atomic pile–Chicago Pile 1 (CP-1), to be exact–but what Fermi and his team had actually done was build the world’s first nuclear reactor.

The Manhattan Project’s goal was a bomb, but soon after the end of the war, scientists, politicians, the military and private industry looked for ways to harness the power of the atom for civilian use, or, perhaps more to the point, for commercial profit. Fifteen years to the day after CP-1 achieved criticality, President Dwight Eisenhower threw a ceremonial switch to start the reactor at Shippingport, PA, which was billed as the first full-scale nuclear power plant built expressly for civilian electrical generation.

Shippingport was, in reality, little more than a submarine engine on blocks, but the nuclear industry and its acolytes will say that it was the beginning of billions of kilowatts of power, promoted (without a hint of irony) as “clean, safe, and too cheap to meter.” It was also, however, the beginning of what is now a, shall we say, weightier legacy: 72,000 tons of nuclear waste.

Atoms for peace, problems forever

News of Fermi’s initial success was communicated by physicist Arthur Compton to the head of the National Defense Research Committee, James Conant, with artistically coded flair:

Compton: The Italian navigator has landed in the New World.
Conant: How were the natives?
Compton: Very friendly.

But soon after that initial success, CP-1 was disassembled and reassembled a short drive away, in Red Gate Woods. The optimism of the physicists notwithstanding, it was thought best to continue the experiments with better radiation shielding–and slightly removed from the center of a heavily populated campus. The move was perhaps the first necessitated by the uneasy relationship between fissile material and the health and safety of those around it, but if it was understood as a broader cautionary tale, no one let that get in the way of “progress.”

A stamp of approval: the US Postal Service commemorated Eisenhower’s initiative in 1955.

By the time the Shippingport reactor went critical, North America already had a nuclear waste problem. The detritus from manufacturing atomic weapons was poisoning surrounding communities at several sites around the continent (not that most civilians knew it at the time). Meltdowns at Chalk River in Canada and the Experimental Breeder Reactor in Idaho had required fevered cleanups, the former of which included the help of a young Navy officer named Jimmy Carter. And the dangers of errant radioisotopes were increasing with the acceleration of above-ground atomic weapons testing. But as President Eisenhower extolled “Atoms for Peace,” and the US Atomic Energy Commission promoted civilian nuclear power at home and abroad, a plan to deal with the “spent fuel” (as used nuclear fuel rods are termed) and other highly radioactive leftovers was not part of the program (beyond, of course, extracting some of the plutonium produced by the fission reaction for bomb production, and the promise that the waste generated by US-built reactors overseas could at some point be marked “return to sender” and repatriated to the United States for disposal).

Attempts at what was called “reprocessing”–the re-refining of used uranium into new reactor fuel–quickly proved expensive, inefficient and dangerous, and created as much radioactive waste as it hoped to reuse. It also provided an obvious avenue for nuclear weapons proliferation because of the resulting production of plutonium. The threat of proliferation (made flesh by India’s test of an atomic bomb in 1976) led President Jimmy Carter to cancel the US reprocessing program in 1977. Attempts by the Department of Energy to push mixed-oxide (MOX) fuel fabrication (combining uranium and plutonium) over the last dozen years has not produced any results, either, despite over $5 billion in government investments.

In fact, there was no official federal policy for the management of used but still highly radioactive nuclear fuel until passage of The Nuclear Waste Policy Act of 1982. And while that law acknowledged the problem of thousands of tons of spent fuel accumulating at US nuclear plants, it didn’t exactly solve it. Instead, the NWPA started a generation of political horse trading, with goals and standards defined more by market exigencies than by science, that leaves America today with what amounts to over five-dozen nominally temporary repositories for high-level radioactive waste–and no defined plan to change that situation anytime soon.

When you assume…

When a US Court of Appeals ruled in June that the Nuclear Regulatory Commission acted improperly when it failed to consider all the risks of storing spent radioactive fuel onsite at the nation’s nuclear power facilities, it made specific reference to the lack of any real answers to the generations-old question of waste storage:

[The Nuclear Regulatory Commission] apparently has no long-term plan other than hoping for a geologic repository. . . . If the government continues to fail in its quest to establish one, then SNF (spent nuclear fuel) will seemingly be stored on site at nuclear plants on a permanent basis. The Commission can and must assess the potential environmental effects of such a failure.

The court concluded the current situation–where spent fuel is stored across the country in what were supposed to be temporary configurations–“poses a dangerous long-term health and environmental risk.”

The decision also harshly criticized regulators for evaluating plant relicensing with the assumption that spent nuclear fuel would be moved to a central long-term waste repository.

A mountain of risks

The Nuclear Waste Policy Act set in motion an elaborate process that was supposed to give the US a number of possible waste sites, but, in the end, the only option seriously explored was the Yucca Mountain site in Nevada. After years of preliminary construction and tens of millions of dollars spent, Yucca was determined to be a bad choice for the waste:

[Yucca Mountain’s] volcanic formation is more porous and less isolated than originally believed–there is evidence that water can seep in, there are seismic concerns, worries about the possibility of new volcanic activity, and a disturbing proximity to underground aquifers. In addition, Yucca mountain has deep spiritual significance for the Shoshone and Paiute peoples.

Every major Nevada politician on both sides of the aisle has opposed the Yucca repository since its inception. Senate Majority Leader Harry Reid has worked most of his political life to block the facility. And with the previous NRC head, Gregory Jaczko, (and now his replacement, Allison Macfarlane, as well) recommending against it, the Obama administration’s Department of Energy moved to end the project.

Even if it were an active option, Yucca Mountain would still be many years and maybe as much as $100 million away from completion. And yet, the nuclear industry (through recipients of its largesse in Congress) has challenged the administration to spend any remaining money in a desperate attempt to keep alive the fantasy of a solution to their waste crisis.

Such fevered dreams, however, do not qualify as an actual plan, according to the courts.

The judges also chastised the NRC for its generic assessment of spent fuel pools, currently packed well beyond their projected capacity at nuclear plants across the United States. Rather than examine each facility and the potential risks specific to its particular storage situation, the NRC had only evaluated the safety risks of onsite storage by looking at a composite of past events. The court ruled that the NRC must appraise each plant individually and account for potential future dangers. Those dangers include leaks, loss of coolant, and failures in the cooling systems, any of which might result in contamination of surrounding areas, overheating and melting of stored rods, and the potential of burning radioactive fuel–risks heightened by the large amounts of fuel now densely packed in the storage pools and underscored by the ongoing disaster at Japan’s Fukushima Daiichi plant.

Indeed, plants were not designed nor built to house nuclear waste long-term. The design life of most reactors in the US was originally 40 years. Discussions of the spent fuel pools usually gave them a 60-year lifespan. That limit seemed to double almost magically as nuclear operators fought to postpone the expense of moving cooler fuel to dry casks and of the final decommissioning of retired reactors.

Everyone out of the pool

As disasters as far afield as the 2011 Tohoku earthquake and last October’s Hurricane Sandy have demonstrated, the storage of spent nuclear fuel in pools requires steady supplies of power and cool water. Any problem that prevents the active circulation of liquid through the spent fuel pools–be it a loss of electricity, the failure of a back-up pump, the clogging of a valve or a leak in the system–means the temperature in the pools will start to rise. If the cooling circuit is out long enough, the water in the pools will start to boil. If the water level dips (due to boiling or a leak) enough to expose hot fuel rods to the air, the metal cladding on the rods will start to burn, in turn heating the fuel even more, resulting in plumes of smoke carrying radioactive isotopes into the atmosphere.

And because these spent fuel pools are so full–containing as much as five times more fuel than they were originally designed to hold, and at densities that come close to those in reactor cores–they both heat stagnant water more quickly and reach volatile temperatures faster when exposed to air.

A spent fuel pool and dry casks. (Both photos courtesy of the US Nuclear Regulatory Commission)

After spent uranium has been in a pool for at least five years (considerably longer than most fuel is productive as an energy source inside the reactor), fuel rods are deemed cool enough to be moved to dry casks. Dry casks are sealed steel cylinders filled with spent fuel and inert gas, which are themselves encased in another layer of steel and concrete. These massive fuel “coffins” are then placed outside, spaced on concrete pads, so that air can circulate and continue to disperse heat.

While the long-term safety of dry casks is still in question, the fact that they require no active cooling system gives them an advantage, in the eyes of many experts, over pool storage. As if to highlight that difference, spent fuel pools at Fukushima Daiichi have posed some of the greatest challenges since the March 2011 earthquake and tsunami, whereas, to date, no quake or flood-related problems have been reported with any of Japan’s dry casks. The disparity was so obvious, that the NRC’s own staff review actually added a proposal to the post-Fukushima taskforce report, recommending that US plants take more fuel out of spent fuel pools and move it to dry casks. (A year-and-a-half later, however, there is still no regulation–or even a draft–requiring such a move.)

But current dry cask storage poses its own set of problems. Moving fuel rods from pools to casks is slow and costly–about $1.5 million per cask, or roughly $7 billion to move all of the nation’s spent fuel (a process, it is estimated, that would take no less than five to ten years). That is expensive enough to have many nuclear plant operators lobbying overtime to avoid doing it.

Further, though not as seemingly vulnerable as fuel pools, dry casks are not impervious to natural disaster. In 2011, a moderate earthquake centered about 20 miles from the North Anna, Virginia, nuclear plant caused most of its vertical dry casks–each weighing 115 tons–to shift, some by more than four inches. The facility’s horizontal casks didn’t move, but some showed what was termed “cosmetic damage.”

Dry casks at Michigan’s Palisades plant sit on a pad atop a sand dune just 100 yards from Lake Michigan. An earthquake there could plunge the casks into the water. And the casks at Palisades are so poorly designed and maintained, submersion could result in water contacting the fuel, contaminating the lake and possibly triggering a nuclear chain reaction.

And though each cask contains far less fissile material than one spent fuel pool, casks are still considered possible targets for terrorism. A TOW anti-tank missile would breach even the best dry cask (PDF), and with 25 percent of the nation’s spent fuel now stored in hundreds of casks across the country, all above ground, it provides a rich target environment.

Confidence game

Two months after the Appeals Court found fault with the Nuclear Regulatory Commission’s imaginary waste mitigation scenario, the NRC announced it would suspend the issuing of new reactor operating licenses, license renewals and construction licenses until the agency could craft a new plan for dealing with the nation’s growing spent nuclear fuel crisis. In drafting its new nuclear “Waste Confidence Decision” (NWCD)–the methodology used to assess the hazards of nuclear waste storage–the Commission said it would evaluate all possible options for resolving the issue.

At first, the NRC said this could include both generic and site-specific actions (remember, the court criticized the NRC’s generic appraisals of pool safety), but as the prescribed process now progresses, it appears any new rule will be designed to give the agency, and so, the industry, as much wiggle room as possible. At a public hearing in November, and later at a pair of web conferences in early December, the regulator’s Waste Confidence Directorate (yes, that’s what it is called) outlined three scenarios (PDF) for any future rulemaking:

Storage until a repository becomes available at the middle of the century
Storage until a repository becomes available at the end of the century
Continued storage in the event a repository is not available

And while, given the current state of affairs, the first option seems optimistic, the fact that their best scenario now projects a repository to be ready by about 2050 is a story in itself.

When the Nuclear Waste Policy Act was signed into law by President Reagan early in 1983, it was expected the process it set in motion would present at least one (and preferably another) long-term repository by the late 1990s. But by the time the “Screw Nevada Bill” (as it is affectionately known in the Silver State) locked in Yucca Mountain as the only option for permanent nuclear waste storage, the projected opening was pushed back to 2007.

But Yucca encountered problems from its earliest days, so a mid-’90s revision of the timeline postponed the official start, this time to 2010. By 2006, the Department of Energy was pegging Yucca’s opening at 2017. And, when the NWPA was again revised in 2010–after Yucca was deemed a non-option–it conveniently avoided setting a date for the opening of a national long-term waste repository altogether.

It was that 2010 revision that was thrown out by the courts in June.

“Interim storage” and “likely reactors”

So, the waste panel now has three scenarios–but what are the underlying assumptions for those scenarios? Not, obviously, any particular site for a centralized, permanent home for the nation’s nuclear garbage–no new site has been chosen, and it can’t even be said there is an active process at work that will choose one.

There are the recommendations of a Blue Ribbon Commission (BRC) convened by the president after Yucca Mountain was off the table. Most notable there, was a recommendation for interim waste storage, consolidated at a handful of locations across the country. But consolidated intermediate waste storage has its own difficulties, not the least of which is that no sites have yet been chosen for any such endeavor. (In fact, plans for the Skull Valley repository, thought to be the interim facility closest to approval, were abandoned by its sponsors just days before Christmas.)

Just-retired New Mexico Senator Jeff Bingaman (D), the last chair of the Energy and Natural Resources Committee, tried to turn the BRC recommendations into law. When he introduced his bill in August, however, he had to do so without any cosponsors. Hearings on the Nuclear Waste Administration Act of 2012 were held in September, but the gavel came down on the 112th Congress without any further action.

In spite of the underdeveloped state of intermediate storage, however, when the waste confidence panel was questioned on the possibility, interim waste repositories seemed to emerge, almost on the fly, as an integral part of any revised waste policy rule.

“Will any of your scenarios include interim centralized above-ground storage?” we asked during the last public session. Paul Michalak, who heads the Environmental Impact Statement branch of the Waste Confidence Directorate, first said temporary sites would be considered in the second and third options. Then, after a short pause, Mr. Michalak added (PDF p40), “First one, too. All right. Right. That’s right. So we’re considering an interim consolidated storage facility [in] all three scenarios.”

The lack of certainty on any site or sites is, however, not the only fuzzy part of the picture. As mentioned earlier, the amount of high-level radioactive waste currently on hand in the US and in need of a final resting place is upwards of 70,000 tons–already at the amount that was set as the initial limit for the Yucca Mountain repository. Given that there are still over 100 domestic commercial nuclear reactors more or less in operation, producing something like an additional 2,000 tons of spent fuel every year, what happens to the Waste Confidence Directorate’s scenarios as the years and waste pile up? How much waste were regulators projecting they would have to deal with–how much spent fuel would a waste confidence decision assume the system could confidently handle?

There was initial confusion on what amount of waste–and at what point in time–was informing the process. Pressed for clarification on the last day of hearings, NRC officials finally posited that it was assumed there would be 150,000 metric tons of spent fuel–all deriving from the commercial reactor fleet–by 2050. By the end of the century, the NRC expects to face a mountain of waste weighing 270,000 metric tons (PDF pp38-41) (though this figure was perplexingly termed both a “conservative number” and an “overestimate”).

How did the panel arrive at these numbers? Were they assuming all 104 (soon to be 103–Wisconsin’s Kewaunee Power Station will shut down by mid-2013 for reasons its owner, Dominion Resources, says are based “purely on economics”) commercial reactors nominally in operation would continue to function for that entire time frame–even though many are nearing the end of their design life and none are licensed to continue operation beyond the 2030s? Were they counting reactors like those at San Onofre, which have been offline for almost a year, and are not expected to restart anytime soon? Or the troubled reactors at Ft. Calhoun in Nebraska and Florida’s Crystal River? Neither facility has been functional in recent years, and both have many hurdles to overcome if they are ever to produce power again. Were they factoring in the projected AP1000 reactors in the early stages of construction in Georgia, or the ones slated for South Carolina? Did the NRC expect more or fewer reactors generating waste over the course of the next 88 years?

The response: waste estimates include all existing facilities, plus “likely reactors”–but the NRC cannot say exactly how many reactors that is (PDF p41).

Jamming it through

Answers like those from the Waste Confidence Directorate do not inspire (pardon the expression) confidence for a country looking at a mountain of eternally toxic waste. Just what would the waste confidence decision (and the environmental impact survey that should result from it) actually cover? What would it mandate, and what would change as a result?

How long is it? Does this NRC chart provide a justification for the narrow scope of the waste confidence process? (US Nuclear Regulatory PDF, p12)

In past relicensing hearings–where the public could comment on proposed license extensions on plants already reaching the end of their 40-year design life–objections based on the mounting waste problem and already packed spent fuel pools were waived off by the NRC, which referenced the waste confidence decision as the basis of its rationale. Yet, when discussing the parameters of the process for the latest, court-ordered revision to the NWCD, Dr. Keith McConnell, Director of the Waste Confidence Directorate, asserted that waste confidence was not connected to the site-specific licensed life of operations (PDF p42), but only to a period defined as “Post-Licensed Life Storage” (which appears, if a chart in the directorate’s presentation (PDF p12) is to be taken literally, to extend from 60 years after the initial creation of waste, to 120 years–at which point a phase labeled “Disposal” begins). Issues of spent fuel pool and dry cask safety are the concerns of a specific plant’s relicensing process, said regulators in the latest hearings.

“It’s like dealing with the Mad Hatter,” commented Kevin Kamps, a radioactive waste specialist for industry watchdog Beyond Nuclear. “Jam yesterday, jam tomorrow, but never jam today.”

The edict originated with the White Queen in Lewis Carroll’s Through the Looking Glass, but it is all too appropriate–and no less maddening–when trying to motivate meaningful change at the Nuclear Regulatory Commission. The NRC has used the nuclear waste confidence decision in licensing inquiries, but in these latest scoping hearings, we are told the NWCD does not apply to on-site waste storage. The Appeals Court criticized the lack of site-specificity in the waste storage rules, but the directorate says they are now only working on a generic guideline. The court disapproved of the NRC’s continued relicensing of nuclear facilities based on the assumption of a long-term geologic repository that in reality did not exist–and the NRC said it was suspending licensing pending a new rule–but now regulators say they don’t anticipate the denial or even the delay of any reactor license application while they await the new waste confidence decision (PDF pp49-50).

In fact, the NRC has continued the review process on pending applications, even though there is now no working NWCD–something deemed essential by the courts–against which to evaluate new licenses.

The period for public comment on the scope of the waste confidence decision ended January 2, and no more scoping hearings are planned. There will be other periods for civic involvement–during the environmental impact survey and rulemaking phases–but, with each step, the areas open to input diminish. And the current schedule has the entire process greatly accelerated over previous revisions.

On January 3, a coalition of 24 grassroots environmental groups filed documents with the Nuclear Regulatory Commission (PDF) protesting “the ‘hurry up’ two-year timeframe” for this assessment, noting the time allotted for environmental review falls far short of the 2019 estimate set by the NRC’s own technical staff. The coalition observed that two years was also not enough time to integrate post-Fukushima recommendations, and that the NRC was narrowing the scope of the decision–ignoring specific instructions from the Appeals Court–in order to accelerate the drafting of a new waste storage rule.

Speed might seem a valuable asset if the NRC were shepherding a Manhattan Project-style push for a solution to the ever-growing waste problem–the one that began with the original Manhattan Project–but that is not what is at work here. Instead, the NRC, under court order, is trying to set the rules for determining the risk of all that high-level radioactive waste if there is no new, feasible solution. The NRC is looking for a way to permit the continued operation of the US nuclear fleet–and so the continued manufacture of nuclear waste–without an answer to the bigger, pressing question.

A plan called HOSS

While there is much to debate about what a true permanent solution to the nuclear waste problem might look like, there is little question that the status quo is unacceptable. Spent fuel pools were never intended to be used as they are now used–re-racked and densely packed with over a generation of fuel assemblies. Both the short- and long-term safety and security of the pools has now been questioned by the courts and laid bare by reality. Pools at numerous US facilities have leaked radioactive waste (PDF) into rivers, groundwater and soil. Sudden “drain downs” have come perilously close to triggering major accidents in plants shockingly close to major population centers. Recent hurricanes have knocked out power to cooling systems and flooded backup generators, and last fall’s superstorm came within inches of overwhelming the coolant intake structure at Oyster Creek in New Jersey.

The crisis at Japan’s Fukushima Daiichi facility was so dangerous and remains dangerous to this day in part because of the large amounts of spent fuel stored in pools next to the reactors but outside of containment–a design identical to 35 US nuclear reactors. A number of these GE Mark 1 Boiling Water Reactors–such as Oyster Creek and Vermont Yankee–have more spent fuel packed into their individual pools than all the waste in Fukushima Daiichi Units 1, 2, 3, and 4 combined.

Dry casks, the obvious next “less-bad” option for high-level radioactive waste, were also not supposed to be a permanent panacea. The design requirements and manufacturing regulations of casks–especially the earliest generations–do not guarantee their reliability anywhere near the 100 to 300 years now being casually tossed around by NRC officials. Some of the nation’s older dry casks (which in this case means 15 to 25 years) have already shown seal failures and structural wear (PDF). Yet, the government does not require direct monitoring of casks for excessive heat or radioactive leaks–only periodic “walkthroughs.”

Add in the reluctance of plant operators to spend money on dry cask transfer and the lack of any workable plan to quickly remove radioactive fuel from failed casks, and dry cask storage also appears to fail to attain any court-ordered level of confidence.

Interim plans, such as regional consolidated above-ground storage, remain just that–plans. There are no sites selected and no designs for such a facility up for public scrutiny. What is readily apparent, though, is that the frequent transport of nuclear waste increases the risk of nuclear accidents. There does not, as of now, exist a transfer container that is wholly leak proof, accident proof, and impervious to terrorist attack. Moving high-level radioactive waste across the nation’s highways, rail lines and waterways has raised fears of “Mobile Chernobyls” and “Floating Fukushimas.”

More troubling still, if past (and present) is prologue, is the tendency of options designed as “interim” to morph into a default “permanent.” Can the nation afford to kick the can once more, spending tens (if not hundreds) of millions of dollars on a “solution” that will only add a collection of new challenges to the existing roster of problems? What will the interim facilities become beyond the next problem, the next site for costly mountains of poorly stored, dangerous waste?

Hardened: The more robust HOSS option as proposed in 2003. (From “Robust Storage of Spent Nuclear Fuel: A Neglected Issue of Homeland Security” courtesy of the Nuclear Information and Resource Service)

If there is an interim option favored by many nuclear experts, engineers and environmentalists (PDF), it is something called HOSS–Hardened On-Site Storage (PDF). HOSS is a version of dry cask storage that is designed and manufactured to last longer, is better protected against leaks and better shielded from potential attacks. Proposals (PDF) involve steel, concrete and earthen barriers incorporating proper ventilation and direct monitoring for heat and radiation.

But not all reactor sites are good candidates for HOSS. Some are too close to rivers that regularly flood, some are vulnerable to the rising seas and increasingly severe storms brought on by climate change, and others are close to active geologic fault zones. For facilities where hardened on-site storage would be an option, nuclear operators will no doubt fight the requirements because of the increased costs above and beyond the price of standard dry cask storage, which most plant owners already try to avoid or delay.

The first rule of holes

Mixed messages: A simple stone marker in Red Gate Woods, just outside Chicago, tries to both warn and reassure visitors to this public park. (Photo: Kevin Kamps, Beyond Nuclear. Used by permission.)

In a wooded park just outside Chicago sits a dirt mound, near a bike path, that contains parts of the still-highly radioactive remains of CP-1, the world’s first atomic pile. Seven decades after that nuclear fuel was first buried, many health experts would not recommend that spot (PDF) for a long, languorous picnic, nor would they recommend drinking from nearby water fountains. To look at it in terms Arthur Compton might favor, when it comes to the products of nuclear chain reactions, the natives are restless. . . and will remain so for millennia to come.

One can perhaps forgive those working in the pressure cooker of the Manhattan Project and in the middle of a world war for ignoring the forest for the trees–for not considering waste disposal while pursuing a self-sustaining nuclear chain reaction. Perhaps. But, as the burial mound in Red Gate Woods reminds us, ignoring a problem does not make it go away.

And if that small pile, or the mountains of spent fuel precariously stored around the nation are not enough of a prompt, the roughly $960 million that the federal government has had to pay private nuclear operators should be. For every year that the Department of Energy does not provide a permanent waste repository–or at least some option that takes the burden of storing spent nuclear fuel off the hands (and off the books) of power companies–the government is obligated to reimburse the industry for the costs of onsite waste storage. By 2020, it is estimated that $11 billion in public money will have been transferred into the pockets of private nuclear companies. By law, these payments cannot be drawn from the ratepayer-fed fund that is earmarked for a permanent geologic repository, and so, these liabilities must be paid out of the federal budget. Legal fees for defending the DoE against these claims will add another 20 to 30 percent to settlement costs.

The Federal Appeals Court, too, has sent a clear message that the buck needs to stop somewhere at some point–and that such a time and place should be both explicit and realistic. The nuclear waste confidence scoping process, however, is already giving the impression that the NRC’s next move will be generic and improbable.

The late, great Texas journalist Molly Ivins once remarked, “The first rule of holes” is “when you’re in one, stop digging.” For high-level radioactive waste, that hole is now a mountain, over 70 years in the making and over 70,000 tons high. If the history of the atomic age is not evidence enough, the implications of the waste confidence decision process put the current crisis in stark relief. There is, right now, no good option for dealing with the nuclear detritus currently on hand, and there is not even a plan to develop a good option in the near future. Without a way to safely store the mountain of waste already created, under what rationale can a responsible government permit the manufacture of so much more?

The federal government spends billions to perpetuate and protect the nuclear industry–and plans to spend billions more to expand the number of commercial reactors. Dozens of facilities already are past, or are fast approaching, the end of their design lives, but the Nuclear Regulatory Commission has yet to reject any request for an operating license extension–and it is poised to approve many more, nuclear waste confidence decision not withstanding. Plant operators continue to balk at any additional regulations that would require better waste management.

The lesson of the first 70 years of fission is that we cannot endure more of the same. The government–from the DoE to the NRC–should reorient its priorities from creating more nuclear waste to safely and securely containing what is now here. Money slated for subsidizing current reactors and building new ones would be better spent on shuttering aging plants, designing better storage options for their waste, modernizing the electrical grid, and developing sustainable energy alternatives. (And reducing demand through conservation programs should always be part of the conversation.)

Enrico Fermi might not have foreseen (or cared about) the mountain of waste that began with his first atomic pile, but current scientists, regulators and elected officials have the benefit of hindsight. If the first rule of holes says stop digging, then the dictum here should be that when you’re trying to summit a mountain, you don’t keep shoveling more garbage on top.

A version of this story previously appeared on Truthout; no version may be reprinted without permission.

Oyster Creek Nuclear Alert: As Floodwaters Fall, More Questions Arise

Posted on October 31, 2012 by Gregg Levine

Oyster Creek Nuclear Generating Station in pre-flood mode. (photo: NRCgov)

New Jersey’s Oyster Creek Nuclear Generating Station remains under an official Alert, a day-and-a-half after the US Nuclear Regulatory Commission declared the emergency classification due to flooding triggered by Hurricane Sandy. An Alert is the second category on the NRC’s four-point emergency scale. Neil Sheehan, a spokesman for the federal regulator, said that floodwaters around the plant’s water intake structure had receded to 5.7 feet at 2:15 PM EDT Tuesday, down from a high of 7.4 feet reached just after midnight.

Water above 6.5 to 7 feet was expected to compromise Oyster Creek’s capacity to cool its reactor and spent fuel pool, according to the NRC. An “Unusual Event,” the first level of emergency classification, was declared Monday afternoon when floodwaters climbed to 4.7 feet.

Though an emergency pump was brought in when water rose above 6.5 feet late Monday, the NRC and plant owner Exelon have been vague about whether it was needed. As of this writing, it is still not clear if Oyster Creek’s heat transfer system is functioning as designed.

As flooding continued and water intake pumps were threatened, plant operators also floated the idea that water levels in the spent fuel pool could be maintained with fire hoses. Outside observers, such as nuclear consultant Arnie Gundersen, suspected Oyster Creek might have accomplished this by repurposing its fire suppression system (and Reuters later reported the same), though, again, neither Exelon nor regulators have given details.

Whether the original intake system or some sort of contingency is being used, it appears the pumps are being powered by backup diesel generators. Oyster Creek, like the vast majority of southern New Jersey, lost grid power as Sandy moved inland Monday night. In the even of a site blackout, backup generators are required to provide power to cooling systems for the reactor–there is no such mandate, however, for spent fuel pools. Power for pool cooling is expected to come either from the grid or the electricity generated by the plant’s own turbines.

As the NRC likes to remind anyone who will listen, Oyster Creek’s reactor was offline for fueling and maintenance. What regulators don’t add, however, is that the reactor still needs cooling for residual decay heat, and that the fuel pool likely contains more fuel and hotter fuel as a result of this procedure, which means it is even more at risk for overheating. And, perhaps most notably, with the reactor shutdown, it is not producing the electricity that could be used to keep water circulating through the spent fuel pool.

If that sounds confusing, it is probably not by accident. Requests for more and more specific information (most notably by the nuclear watchdog site SimplyInfo) from Exelon and the NRC remain largely unanswered.

Oyster Creek was not the only nuclear power plant dealing with Sandy-related emergencies. As reported here yesterday, Nine Mile Point Unit 1 and Indian Point Unit 3–both in New York–each had to scram because of grid interruptions triggered by Monday’s superstorm. In addition, one of New Jersey’s Salem reactors shut down when four of six condenser circulators (water pumps that aid in heat transfer) failed “due to a combination of high river level and detritus from Hurricane Sandy’s transit.” Salem vented vapor from what are considered non-nuclear systems, though as noted often, that does not mean it is completely free of radioactive components. (Salem’s other reactor was offline for refueling.)

Limerick (PA) reactors 1 and 2, Millstone (CT) 3, and Vermont Yankee all reduced power output in response to Superstorm Sandy. The storm also caused large numbers of emergency warning sirens around both Oyster Creek and the Peach Bottom (PA) nuclear plant to fail.

If you thought all of these problems would cause nuclear industry representatives to lay low for a while, well, you’d be wrong:

“Our facilities’ ability to weather the strongest Atlantic tropical storm on record is due to rigorous precautions taken in advance of the storm,” Marvin Fertel, chief executive officer of the Nuclear Energy Institute, a Washington-based industry group, said yesterday in a statement.

Fertel went on to brag that of the 34 reactors it said were in Sandy’s path, 24 survived the storm without incident.

Or, to look at it another way, during a single day, the heavily populated eastern coast of the Unite States saw multiple nuclear reactors experience problems. And that’s in the estimation of the nuclear industry’s top lobbyist.

Or, should we say, the underestimation? Of the ten reactors not in Fertel’s group of 24, seven were already offline, and the industry is not counting them. So, by Fertel’s math, Oyster Creek does not figure against what he considers success. Power reductions and failed emergency warning systems are also not factored in, it appears.

This storm–and the trouble it caused for America’s nuclear fleet–comes in the context of an 18-month battle to improve nuclear plant safety in the wake of the multiple meltdowns and continuing crisis at Japan’s Fukushima Daiichi nuclear facility. Many of the rules and safety upgrades proposed by a US post-Fukushima taskforce are directly applicable to problems resulting from Superstorm Sandy. Improvements to flood preparation, backup power regimes, spent fuel storage and emergency notification were all part of the taskforce report–all of which were theoretically accepted by the Nuclear Regulatory Commission. But nuclear industry pushback, and stonewalling, politicking and outright defiance by pro-industry commissioners has severely slowed the execution of post-Fukushima lessons learned.

The acolytes of atom-splitting will no doubt point to the unprecedented nature of this massive hybrid storm, echoing the “who could have predicted” language heard from so many after the earthquake and tsunami that started the Fukushima disaster. Indeed, such language has already been used–though, granted, in a non-nuclear context–by Con Edison officials discussing massive power outages still afflicting New York City:

At a Consolidated Edison substation in Manhattan’s East Village, a gigantic wall of water defied elaborate planning and expectations, swamped underground electrical equipment, and left about 250,000 lower Manhattan customers without power.

Last year, the surge from Hurricane Irene reached 9.5 feet at the substation. ConEd figured it had that covered.

The utility also figured the infrastructure could handle a repeat of the highest surge on record for the area — 11 feet during a hurricane in 1821, according to the National Weather Service. After all, the substation was designed to withstand a surge of 12.5 feet.

With all the planning, and all the predictions, planning big was not big enough. Sandy went bigger — a surge of 14 feet.

“Nobody predicted it would be that high,” said ConEd spokesman Allan Drury.

In a decade that has seen most of the warmest years on record and some of the era’s worst storms, there needs to be some limit on such excuses. Nearly a million New York City residents (including this reporter) are expected to be without electricity through the end of the week. Residents in the outer boroughs and millions in New Jersey could be in the dark for far longer. Having a grid that simply survives a category 1 hurricane without a Fukushima-sized nuclear disaster is nothing to crow about.

The astronomical cost of restoring power to millions of consumers is real, as is the potential danger still posed by a number of crippled nuclear power plants. The price of preventing the current storm-related emergencies from getting worse is also not a trivial matter, nor are the radioactive isotopes vented with every emergency reactor scram. All of that should be part of the nuclear industry’s report card; all of that should raise eyebrows and questions the next time nuclear is touted as a clean, safe, affordable energy source for a climate change-challenged world.

UPDATE: The AP is reporting that the NRC has now lifted the emergency alert at Oyster Creek.

Superstorm Sandy Shows Nuclear Plants Who’s Boss

Posted on October 30, 2012 by Gregg Levine

Oyster Creek Nuclear Power Station as seen in drier times. (photo via wikipedia)

Once there was an ocean liner; its builders said it was unsinkable. Nature had other ideas.

On Monday evening, as Hurricane Sandy was becoming Post-Tropical Cyclone Sandy, pushing record amounts of water on to Atlantic shores from the Carolinas to Connecticut, the Nuclear Regulatory Commission issued a statement. Oyster Creek, the nation’s oldest operating nuclear reactor, was under an Alert. . . and under a good deal of water.

An Alert is the second rung on the NRC’s four-point emergency classification scale. It indicates “events are in process or have occurred which involve an actual or potential substantial degradation in the level of safety of the plant.” (By way of reference, the fourth level–a General Emergency–indicates substantial core damage and a potential loss of containment.)

As reported earlier, Oyster Creek’s coolant intake structure was surrounded by floodwaters that arrived with Sandy. Oyster Creek’s 47-year-old design requires massive amounts of external water that must be actively pumped through the plant to keep it cool. Even when the reactor is offline, as was the case on Monday, water must circulate through the spent fuel pools to keep them from overheating, risking fire and airborne radioactive contamination.

With the reactor shut down, the facility is dependant on external power to keep water circulating. But even if the grid holds up, rising waters could trigger a troubling scenario:

The water level was more than six feet above normal. At seven feet, the plant would lose the ability to cool its spent fuel pool in the normal fashion, according to Neil Sheehan, a spokesman for the Nuclear Regulatory Commission.

The plant would probably have to switch to using fire hoses to pump in extra water to make up for evaporation, Mr. Sheehan said, because it could no longer pull water out of Barnegat Bay and circulate it through a heat exchanger, to cool the water in the pool.

If hoses desperately pouring water on endangered spent fuel pools remind you of Fukushima, it should. Oyster Creek is the same model of GE boiling water reactor that failed so catastrophically in Japan.

The NRC press release (PDF) made a point–echoed in most traditional media reports–of noting that Oyster Creek’s reactor was shut down, as if to indicate that this made the situation less urgent. While not having to scram a hot reactor is usually a plus, this fact does little to lessen the potential problem here. As nuclear engineer Arnie Gundersen told Democracy Now! before the Alert was declared:

[Oyster Creek is] in a refueling outage. That means that all the nuclear fuel is not in the nuclear reactor, but it’s over in the spent fuel pool. And in that condition, there’s no backup power for the spent fuel pools. So, if Oyster Creek were to lose its offsite power—and, frankly, that’s really likely—there would be no way cool that nuclear fuel that’s in the fuel pool until they get the power reestablished. Nuclear fuel pools don’t have to be cooled by diesels per the old Nuclear Regulatory Commission regulations.

A site blackout (SBO) or a loss of coolant issue at Oyster Creek puts all of the nuclear fuel and high-level radioactive waste at risk. The plant being offline does not change that, though it does, in this case, increase the risk of an SBO.

But in the statement from the NRC, there was also another point they wanted to underscore (or one could even say “brag on”): “As of 9 p.m. EDT Monday, no plants had to shut down as a result of the storm.”

If only regulators had held on to that release just one more minute. . . .

SCRIBA, NY – On October 29 at 9 p.m., Nine Mile Point Unit 1 experienced an automatic reactor shutdown.

The shutdown was caused by an electrical grid disturbance that caused the unit’s output breakers to open. When the unit’s electrical output breakers open, there is nowhere to “push” or transmit the power and the unit is appropriately designed to shut down under these conditions.

“Our preliminary investigation identified a lighting pole in the Scriba switchyard that had fallen onto an electrical component. This is believed to have caused the grid disturbance. We continue to evaluate conditions in the switchyard,” said Jill Lyon, company spokesperson.

Nine Mile Point Nuclear Station consists of two GE boiling water reactors, one of which would be the oldest operating in the US were it not for Oyster Creek. They are located just outside Oswego, NY, on the shores of Lake Ontario. Just one week ago, Unit 1–the older reactor–declared an “unusual event” as the result of a fire in an electrical panel. Then, on Monday, the reactor scrammed because of a grid disturbance, likely caused by a lighting pole knocked over by Sandy’s high winds.

An hour and forty-five minutes later, and 250 miles southeast, another of the nation’s ancient reactors also scrammed because of an interruption in offsite power. Indian Point, the very old and very contentious nuclear facility less than an hour’s drive north of New York City, shut down because of “external grid issues.” And Superstorm Sandy has given Metropolitan New York’s grid a lot of issues.

While neither of these shutdowns is considered catastrophic, they are not as trivial as the plant operators and federal regulators would have you believe. First, emergency shutdowns–scrams–are not stress-free events, even for the most robust of reactors. As discussed here before, it is akin to slamming the breaks on a speeding locomotive. These scrams cause wear and tear aging reactors can ill afford.

Second, scrams produce pressure that usually leads to the venting of some radioactive vapor. Operators and the NRC will tell you that these releases are well within “permissible” levels–what they can’t tell you is that “permissible” is the same as “safe.”

If these plants were offline, or running at reduced power, the scrams would not have been as hard on the reactors or the environment. Hitting the breaks at 25 mph is easier on a car than slamming them while going 65. But the NRC does not have a policy of ordering shutdowns or reductions in capacity in advance of a massive storm. In fact, the NRC has no blanket protocol for these situations, period. By Monday morning, regulators agreed to dispatch extra inspectors to nuclear plants in harm’s way (and they gave them sat phones, too!), but they left it to private nuclear utility operators to decide what would be done in advance to prepare for the predicted natural disaster.

Operators and the Nuclear Regulatory Commission spokes-folks like to remind all who will listen (or, at least, all who will transcribe) that nuclear reactors are the proverbial house of bricks–a hurricane might huff and puff, but the reinforced concrete that makes up a typical containment building will not blow in. But that’s not the issue, and the NRC, at least, should know it.

Loss of power (SBOs) and loss of coolant accidents (LOCAs) are what nuclear watchdogs were warning about in advance of Sandy, and they are exactly the problems that presented themselves in New York and New Jersey when the storm hit.

The engineers of the Titanic claimed that they had built the unsinkable ship, but human error, corners cut on construction, and a big chunk of ice cast such hubris asunder. Nuclear engineers, regulators and operators love to talk of four-inch thick walls and “defense-in-depth” backup systems, but the planet is literally littered with the fallout of their folly. Nuclear power systems are too complex and too dangerous for the best of times and the best laid plans. How are they supposed to survive the worst of times and no plans at all?

Book Salon – Joseph Mangano, Author of Mad Science: The Nuclear Power Experiment

Posted on October 15, 2012 by Gregg Levine

[Note: On Saturday afternoon, I hosted FDL Book Salon, featuring a live Q&A with Joseph Mangano, author of Mad Science: The Nuclear Power Experiment. This is a repost of that discussion.]

In December of 1962, Consolidated Edison, New York City’s main purveyor of electricity, announced that it had submitted an official proposal to the US Atomic Energy Commission (the AEC, the precursor to today’s Nuclear Regulatory Commission) for the construction of a nuclear power plant on a site called Ravenswood. . . in Queens. . . on the East River. . . directly across from the United Nations. . . within five miles of roughly five million people.

Ravenswood became the site of America’s first demonstrations against nuclear power. It inspired petitions to President John F. Kennedy and NYC Mayor Robert Wagner, and the possibility of a nuclear reactor in such a densely populated area even invited public skepticism from the pro-nuclear head of the AEC, David Lilienthal. Finally, after a year of pressure, led by the borough’s community leaders, Con Edison withdrew their application.

But within three years, reports suggested Con Ed had plans to build a nuclear plant under Central Park. After that idea was roundly criticized, the utility publicly proposed a reactor complex under Welfare Island (now known as Roosevelt Island), instead.

Despite the strong support of Laurence Rockefeller, the brother of New York State’s governor, the Welfare Island project disappeared from Con Ed’s plans by 1970. . . soon to be replaced by the idea of a nuclear “jetport”–artificial islands to be built in the ocean just south of New York City that would host a pair of commercial reactors.

Does that sound like madness? Well, from today’s perspective–with Three Mile Island, Chernobyl, and now Fukushima universally understood as synonyms for disaster–it probably does. But there was a time before those meltdowns when nuclear power still had a bit of a glow, when, despite (or because of) the devastation from the atomic bombs dropped on Japan, many believed that the atom’s awesome power could be harnessed for good; a time when dangerous and deadly mishaps at a number of the nation’s earlier reactors were easily excused or kept completely secret.

In Mad Science: The Nuclear Power Experiment, Joseph Mangano returns to that time, and then methodically pulls back the curtain on the real history of nuclear folly and failure, and the energy source that continues to masquerade as clean, safe, and “too cheap to meter.”

From Chalk River, in Canada, the world’s first reactor meltdown, through Idaho’s EBR-1, Waltz Mill, PA, Santa Susana’s failed Sodium Reactor Experiment, the Idaho National Lab explosion that killed three, Fermi-1, which almost irradiated Detroit, and, of course, Three Mile Island, Mad Science provides a chilling catalog of nuclear accidents, all of which were disasters in their own right, and all of which illustrate a troubling pattern of safety breeches followed by secrecy and lies.

Nuclear power’s precarious existence is not, of course, just a story for the history books, and Mangano also details the state of America’s 104 remaining reactors. So many of today’s plants have problems, too, but perhaps the maddest thing about the mad science of civilian atomic power is that science often plays a minor role in decisions about the technology’s future.

From its earliest days, this supposedly super-cheap energy was financially unsustainable. By the mid-1950s, private insurers had turned their back on nuclear facilities, fearing the massive payouts that would follow any accident. The nuclear industry turned to the US government, and in 1957, the Price-Anderson Act limited a plant’s liability to an artificially low but apparently insurable figure–any damage beyond that would be covered by US taxpayers. Shippingport, America’s first large-scale commercial nuclear reactor, was built entirely with government money, and that is hardly an isolated story. Even before the Three Mile Island meltdown, Wall Street had walked away from nuclear energy, meaning that no new reactors could be built without massive federal loan guarantees.

Indeed, the cost of construction, when piled on top of the cost of fueling, skilled labor, operation and upkeep, made the prospect of opening a new nuclear plant financially unpalatable. So, as Mangano explains, nuclear utilities turned to another strategy for making their vertical profitable, one familiar to any student of late Western capitalism. Rather than build, energy companies would instead buy. Since the 1990s, the nuclear sector has seen massive consolidation. Mergers and acquisitions have created nuclear mega-corporations, like Exelon, Duke, and Entergy, which run multiple reactors across many facilities in many states. And the supposed regulators of the industry, the NRC, has encouraged this behavior by rubberstamping dozens upon dozens of 20-year license extensions, turning reactors that were supposed to be nearing the end of their functional lives into valuable assets.

But the pain of nuclear power isn’t only measured in meltdowns and money. Whether firing on all cylinders (as it were) or falling apart, nuclear plants have proven to be dangerous to the populations they are supposed to serve. Joseph Mangano, an epidemiologist by trade, and director of the Radiation and Public Health Project (RPHP), has made a career out of trying to understand the immediate and long-term effects of nuclear madness, be it from fallout, leaks, or the “permissible levels” of radioactive isotopes that are regularly released from reactors as part of normal operation.

As I mentioned earlier this week, Mangano and the RPHP are the inheritors of the Baby Tooth Survey, the groundbreaking examination of strontium levels in children born before, during and after the age of atmospheric nuclear bomb tests. The discovery of high levels of Sr-90, a radioactive byproduct of uranium fission, in the baby teeth of children born in the 1950s and ’60s led directly to the Partial Test Ban Treaty in 1963.

Mangano’s work has built on the original survey, linking elevated Sr-90 levels to cancer, and examining the increases in strontium in the bodies of children that lived close to nuclear power plants. And all of this is explained in great detail in Mad Science.

The author has also applied his expertise to the fallout from the ongoing Fukushima disaster. Last December, Mangano and Janette Sherman published a peer-reviewed article in the International Journal of Health Sciences (PDF) stating that in the 14 weeks following the start of the Japanese nuclear crisis, an estimated 14,000 excess deaths in the United States could be linked to radioactive fallout from Fukushima Daiichi. (RPHP has since revised that estimate–upward–to almost 22,000 deaths (PDF).)

That last study is not specifically detailed in Mad Science, but I hope we can touch on it today–along with some of the many equally maddening “experiments” in nuclear energy production that Mangano carefully unwraps in his book.

[Click here to read my two-hour chat with Joe Mangano.]

NRC Report on San Onofre: Close Enough for Government Work

Posted on July 20, 2012 by Gregg Levine

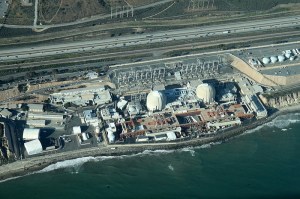

An aerial view of the San Onofre Generating Station. (photo: Jelson25 via Wikipedia)

The Nuclear Regulatory Commission released its report on recent failures at the San Onofre nuclear facility [PDF] on Thursday, stating that, as far as the government regulator was concerned, the operators of the power plant did nothing wrong when they reported major design changes as simple equipment replacement.

At issue at the San Onofre Nuclear Generating Station (SONGS) is the replacement of two giant steam generators less than two years ago. A metal heat-transfer tube in one generator ruptured in January, releasing superheated radioactive steam and triggering a shutdown. Further examination of that generator and its twin revealed unprecedented and unsettling rates of wear in hundreds of other tubes. SONGS has been completely offline ever since.

Investigation of the problem by plant operators and the NRC, as well as independent watchdogs, found that flaws in the computer modeling of the radically redesigned replacement generators lead to building and installing tubing that vibrated substantially more than was anticipated, and substantially more than the equipment could tolerate. Within 18 months of starting up the retrofitted reactors, vibration caused rapid degradation of the metal tubes, resulting in the rupture.

Still, according to the NRC, no laws were broken. Southern California Edison (a division of Edison International, the majority owner of SONGS) did not mislead regulators about the extent of the changes. Federal officials were not lax in their oversight. Things may not have gone exactly as planned, but no one on this side of the Pacific was to blame. Maybe the Japanese at Mitsubishi Heavy Industries, the folks who built the replacement parts, have some ‘splainin’ to do, but SCE and the NRC performed just like they were supposed to.

And that’s exactly the point, isn’t it?

To any outside observer (well, to any observer willing to plow through technical data and design specs), the replacement generators at San Onofre were quite obviously a major redesign–something requiring a more careful, time-consuming and, yes, costly government approval process. Mitsubishi was not the original manufacturer of the SONGS generators, and Edison was not looking to have Mitsubishi machine exact replacement parts. That would have been more expensive–much more expensive.

Instead, SCE sought out what would be the nuclear industry equivalent of “off the shelf” parts, and hoped to engineer a way to make them work with their 30-year-old reactors. Further, Edison desired to increase the output of this power plant. More power theoretically equals more profit–and, to oversimplify the technical details, more tubes could equal more power. The new generators had many times more heat-transfer tubes than the originals.

So, the major design changes at San Onofre were, to turn a phrase, very much by design. But to call them major design changes would have increased the cost, the time, and the amount of oversight required, so, as the NRC report seems to make clear, the rules are written to insure that such changes pass under the regulatory radar:

The agency staff investigation concluded that Edison “provided the NRC with all the information required under existing regulations about proposed design changes to its steam generators,” according to a statement.

But a key question remains under study: Does the agency need to change the process that was used to approve the replacement generators? At issue is whether tubing problems that eventually sidelined the reactors might have been identified by changing rules under which utilities swap equipment at nuclear power plants.

For example, the report concluded that there were “major design changes” between the original and replacement generators at San Onofre, yet they qualified as essentially identical replacements that did not require an exhaustive review by the NRC.

Show me what regulatory capture looks like; this is what regulatory capture looks like

The “letter is willing but the spirit is weak” tone of the San Onofre report seems especially poignant/disturbing coming, as it does, within a fortnight of the latest Japanese report on the Fukushima disaster. That lengthy study found that government officials colluded with the nuclear industry to avoid upgrades and evade scrutiny, resulting in a severe undermining of public safety. Summaries of that report focused on aspects described as unique to Japanese culture, but the NRC’s San Onofre findings demonstrate that this well-choreographed dance between industry and regulators crosses cultural and national boundaries.

The SONGS report also comes the same week as a party thrown by supporters of the recently deposed NRC chairman, Gregory Jaczko:

A cadre of veterans from the office of Senate Majority Leader Harry Reid (D-Nev.) are organizing an effort to pay down the legal debts taken on by Gregory Jaczko, the former chairman of the Nuclear Regulatory Commission, who stepped down amid a fierce industry-backed assault.

Jaczko, a former Reid staffer, racked up tens of thousands in legal fees defending himself. The thinking behind the fundraising effort is straightforward: High-level staffers for top senators can command high salaries in the private sector, many times more than can be earned in public service. So former Reid staffers who have spent their post-Senate years in more lucrative pursuits are coming to the aid of a colleague who made a different, and quite costly, decision.

. . . .

Jaczko’s former colleagues will gather Tuesday evening with Reid and Rep. Ed Markey (D-Mass.), another former boss of his, to thank him for his time on the nuclear panel. (No fundraising can legally take place while Reid and Markey are at the event, organizers said.)

. . . .

The industry’s two top representatives, Alex Flint and Marvin Fertel of the Nuclear Energy Institute, are planning to attend the event, said Karen Wayland, a former Reid staffer who, along with [another former Reid aid Susan] McCue, spearheaded the effort.

Tuesday’s event will also co-hosted by Jimmy Ryan, Dayle Cristinzio and Kai Anderson, high-powered corporate lobbyists who were senior aides to Reid.

Since the writing of that story, the event took place and Senator Reid’s Searchlight Foundation has made known its intention to donate $10,000 to Jaczko’s defense fund.

To be clear, what happened to Jaczko, who was forced out after he advocated for modest safety improvements at US nuclear plants and coordinated with the Department of Energy to end work on the Yucca Mountain nuclear waste project, is itself a lesson in regulatory capture. The US nuclear industry sees any new safety requirements as a threat to their bottom line, and it desperately needs the federal government to find a storage solution for their vast piles of highly radioactive spent fuel and related waste–and so Jaczko was purged and a message was sent.

But, as the guest list would tell you, it is hard to call anyone in this crowd a pure hero. When key figures behind your ouster are also guests at your farewell party and fundraiser, you have to ask yourself if you were really that tough–and everyone around you has to see that industry and government are too cozy.

Close is not good

If online etymologies are to be believed, the expression “close enough for government work” has its origins in the World War II saying, “Good enough for government work.” Back then, the saying was understood to mean that the government had exacting standards, so if the work could pass government inspection, then it could meet any benchmark.

The phrase quickly devolved, however, into its sarcastic opposite–defense contracting will have that effect–and now “close enough for government work” means barely acceptable.

And government–at least when it comes to agencies like the Nuclear Regulatory Commission–has sought to live up to that new understanding ever since.

But when it comes to nuclear power, with the ominous safety implications of substandard work and lax oversight, close enough is not good enough. And if government and industry “working closely” on a problem means what it seems to have at San Onofre, then “close” pretty much never means “good.”

Made in Japan? Fukushima Crisis Is Nuclear, Not Cultural

Posted on July 13, 2012 by Gregg Levine

(photo: Steve Snodgrass)

Since the release of the Fukushima Nuclear Accident Independent Committee’s official report last week, much has been made of how it implicates Japanese culture as one of the root causes of the crisis. The committee’s chairman, Dr. Kiyoshi Kurokawa, makes the accusation quite plainly in the opening paragraphs of the executive summary [PDF]:

What must be admitted – very painfully – is that this was a disaster “Made in Japan.” Its fundamental causes are to be found in the ingrained conventions of Japanese culture: our reflexive obedience; our reluctance to question authority; our devotion to ‘sticking with the program’; our groupism; and our insularity.

That this apparently critical self-examination was seized upon by much of the western media’s coverage of the report probably does not come as a surprise–especially when you consider that this revelation falls within the first 300 words of an 88-page document. Cultural stereotypes and incomplete reads are hardly new to establishment reportage. What might come as a shock, however, is that this painful admission is only made in the English-language version of the document, and only in the chairman’s introduction is the “made in Japan” conclusion drawn so specifically.

What replaces the cultural critique in the Japanese edition and in the body of the English summary is a ringing indictment of the cozy relationship between the Japanese nuclear industry and the government agencies that were supposed to regulate it. This “regulatory capture,” as the report details, is certainly central to the committee’s findings and crucial to understanding how the Fukushima disaster is a manmade catastrophe, but it is not unique to the culture of Japan.

Indeed, observers of the United States will recognize this lax regulatory construct as part-and-parcel of problems that threaten the safety and health of its citizenry, be it in the nuclear sector, the energy sector as a whole, or across a wide variety of officially regulated industries.

No protection

The Japanese Diet’s Fukushima report includes a healthy dose of displeasure with the close ties between government regulators and the nuclear industry they were supposed to monitor. The closed, insular nature of nuclear oversight that might be attributed to Japanese culture by a superficial read is, in fact, a product of the universally familiar “revolving door” that sees industry insiders taking turns as government bureaucrats, and regulatory staff “graduating” to well-compensated positions in the private sector.

Mariko Oi, a reporter at the BBC’s Tokyo bureau, described the situation this way when discussing the Fukushima report on the World Service:

When there was a whistleblower, the first call that the government or the ministry made was to TEPCO, saying, “Hey, you’ve got a whistleblower,” instead of “Hey, you’ve got a problem at the nuclear reactor.”

A disturbing betrayal of accountability in any context, it is especially troubling with the ominous repercussions of the Fukushima disaster still metastasizing. And it is also ominously familiar.

Look, for example, just across the Pacific:

[San Onofre Nuclear Generating Station] was chastised two years ago by the U.S. Nuclear Regulatory Commission for creating an atmosphere in which employees fear retaliation if they report safety concerns.

. . . .

Edward Bussey, a former health physics technician at the plant, sued Edison in state court after he was fired in 2006 under what he said were trumped-up charges that he had falsified initials on logs documenting that certain materials had been checked for radiation. Bussey contended that he was really fired in retaliation for complaining about safety concerns to his supervisors and the NRC.

San Onofre–SONGS, if you will–has been offline since January when a radioactive steam leak led to the discovery of severely degraded copper tubing in both of the plant’s existing reactors. But here’s the real kicker: whistleblower suits at SONGS, like the one from Mr. Bussey, have routinely been summarily dismissed thanks to a little known legal loophole:

San Onofre is majority owned and operated by Southern California Edison, a private company, but it sits on land leased from the Camp Pendleton Marine Corps base.

That puts the plant in a so-called federal enclave, where courts have held that many California laws, including labor laws intended to protect whistle-blowers, do not apply.

Lawsuits filed in state court by San Onofre workers who claimed that they were fired or retaliated against for reporting safety concerns, sexual harassment and other issues have been tossed out because of the plant’s location.

The Los Angeles Times cites examples dating back to the construction of San Onofre where personnel who complained about safety or work conditions were terminated and left without many of the legal options normally afforded most California citizens. The history of SONGS is liberally peppered with accidents and safety breaches–and the lies and cover-ups from its owner-operators that go with them. Considering that San Onofre employees are regularly punished for exposing problems and have fewer whistleblower protections, is it at all surprising that SONGS is reported to have the worst safety record of all US nuclear plants?

If San Onofre’s track record isn’t evidence enough of the dangers of weak regulation, the findings and conclusions of the latest Fukushima report make it crystal clear: “safety culture” is not undermined by Japanese culture so much as it is by the more international culture of corruption born of the incestuous relationship between industry and regulators.

It’s a nuclear thing…

But the corrupt culture–be it national or universal–is itself a bit of a dodge. As noted by the Financial Times, the Japanese and their regulatory structure have managed to operate the technologically complex Shinkansen bullet trains since 1964 without a single derailment or fatal collision.

As the Diet’s report makes abundantly clear–far more clear than any talk about Japanese culture–the multiple failures at and around Fukushima Daiichi were directly related to the design of the reactors and to fatal flaws inherent in nuclear power generation.

Return for a moment to something discussed here last summer, The Light Water Paradox: “In order to safely generate a steady stream of electricity, a light water reactor needs a steady stream of electricity.” As previously noted, this is not some perpetual motion riddle–all but one of Japan’s commercial nuclear reactors and every operating reactor in the United States is of a design that requires water to be actively pumped though the reactor containment in order to keep the radioactive fuel cool enough to prevent a string of catastrophes, from hydrogen explosions and cladding fires, to core meltdowns and melt-throughs.

Most of the multiple calamities to befall Fukushima Daiichi have their roots in the paradox. As many have observed and the latest Japanese report reiterates, the Tohoku earthquake caused breaches in reactor containment and cooling structures, and damaged all of Fukushima’s electrical systems, save the diesel backup generators, which were in turn taken out by the tsunami that followed the quake. Meeting the demands of the paradox–circulating coolant in a contained system–was severely compromised after the quake, and was rendered completely impossible after the tsunami. Given Japan’s seismic history, and the need of any light water reactor for massive amounts of water, Fukushima wouldn’t really have been a surprise even if scientists hadn’t been telling plant operators and Japanese regulators about these very problems for the last two decades.

Back at San Onofre, US regulators disclosed Thursday that the damage to the metal tubes that circulate radioactive water between the reactor and the steam turbines (in other words, part of the system that takes heat away from the core) was far more extensive than had previously been disclosed by plant operators:

[Each of San Onofre’s steam generators has] 9,727 U-shaped tubes inside, each three-quarters of an inch in diameter.

The alloy tubes represent a critical safety barrier — if one breaks, there is the potential that radioactivity could escape into the atmosphere. Also, serious leaks can drain protective cooling water from a reactor.

Gradual wear is common in such tubing, but the rate of erosion at San Onofre startled officials since the equipment is relatively new. The generators were replaced in a $670 million overhaul and began operating in April 2010 in Unit 2 and February 2011 in Unit 3.

Tubes have to be taken out of service if 35 percent — roughly a third — of the wall wears away, and each of the four generators at the plant is designed to operate with a maximum of 778 retired tubes.

In one troubled generator in Unit 3, 420 tubes have been retired. The records show another 197 tubes in that generator have between 20 percent and 34 percent wear, meaning they are close to reaching the point when they would be at risk of breaking.

More than 500 others in that generator have between 10 percent and 19 percent wear in the tube wall.

“The new data reveal that there are thousands of damaged tubes in both Units 2 and 3, raising serious questions whether either unit should ever be restarted,” said Daniel Hirsch, a lecturer on nuclear policy at the University of California, Santa Cruz, who is a critic of the industry. “The problem is vastly larger than has been disclosed to date.”

And if anything, the Nuclear Regulatory Commission is underplaying the problem. A report from Fairewinds Associates, also released this week, unfavorably compared San Onofre’s situation with similar problems at other facilities:

[SONGS] has plugged 3.7 times as many steam generator tubes than the combined total of the entire number of plugged replacement steam generator tubes at all the other nuclear power plants in the US.

The report also explains that eight of the tubes failed a “pressure test” at San Onofre, while the same test at other facilities had never triggered any more than one tube breach. Fairewinds goes on to note that both units at San Onofre are equally precarious, and that neither can be restarted with any real promise of safe operation.

And while the rapid degeneration of the tubing might be peculiar to San Onofre, the dangers inherent in a system that requires constant power for constant cooling–lest a long list of possible problems triggers a toxic crisis–are evident across the entire US nuclear fleet. Cracked containment buildings, coolant leaks, transformer fires, power outages, and a vast catalogue of human errors fill the NRC’s event reports practically every month of every year for the past 40 years. To put it simply, with nuclear power, too much can go wrong when everything has to go right.

And this is to say nothing of the dangers that come with nuclear waste storage. Like with the reactors, the spent fuel pools that dot the grounds of almost every nuclear plant in America and Japan require a consistent and constantly circulating water supply to keep them from overheating (which would result in many of the same disastrous outcomes seen with damaged reactors). At Fukushima, one of the spent fuel pools is, at any given point, as much of a concern as the severely damaged reactor cores.

Ions and tigers and bears, oh my!

Even with the latest findings, however, Japanese Prime Minister Yoshihiko Noda pushed ahead with the restart of the precariously situated and similarly flawed nuclear reactor complex at Oi. It is as if the PM and the nuclear industry feared Japan surviving another summer without nuclear-generated electricity would demonstrate once and for all that the country had no reason to trade so much of its health and safety for an unnecessary return.

But the people of Japan seem to see it differently. Tens of thousands have turned out to demonstrate against their nation’s slide back into this dangerous culture of corruption. (Remember, the Oi restart comes without any safety upgrades made in response to the Fukushima disaster.)

And maybe there’s where cultural distinctions can be drawn. In Japan, the citizenry–especially women–are not demonstrating “reflexive obedience,” instead, they are demonstrating. In the United States, where 23 nuclear reactors are of the same design as Fukushima Daiichi, and 184 million people within 50 miles of a nuclear power plant, when the chairman of the Nuclear Regulatory Commission suggested requiring some modest upgrades as a response to the Fukushima disaster, the nuclear industry got its henchmen on the NRC and in Congress to push him out. . . with little public outcry.

Still, the BBC’s Mariko Oi lamented on the day the Fukushima report was released that Japanese media was paying more attention to the birth of a giant panda at a Tokyo zoo. That sort of response would seem all too familiar to any consumer of American media.

That baby panda, it should be noted, has since died. The radioactive fallout from Fukushima, however, lingers, and the crisis at Daiichi is far from over. The threat to global heath and safety that is unique to nuclear power lives on.

capitoilette

Employees must wash hands before leaving.

Tag Archives: Fukushima

The Flood Next Time

The Brief Wondrous Life (and Long Dangerous Half-Life) of Strontium-90

The Long, Long Con: Seventy Years of Nuclear Fission; Thousands of Centuries of Nuclear Waste

Oyster Creek Nuclear Alert: As Floodwaters Fall, More Questions Arise

Superstorm Sandy Shows Nuclear Plants Who’s Boss

Book Salon – Joseph Mangano, Author of Mad Science: The Nuclear Power Experiment

NRC Report on San Onofre: Close Enough for Government Work

Made in Japan? Fukushima Crisis Is Nuclear, Not Cultural
